UtilityAlpine2,990/3,500 lb.

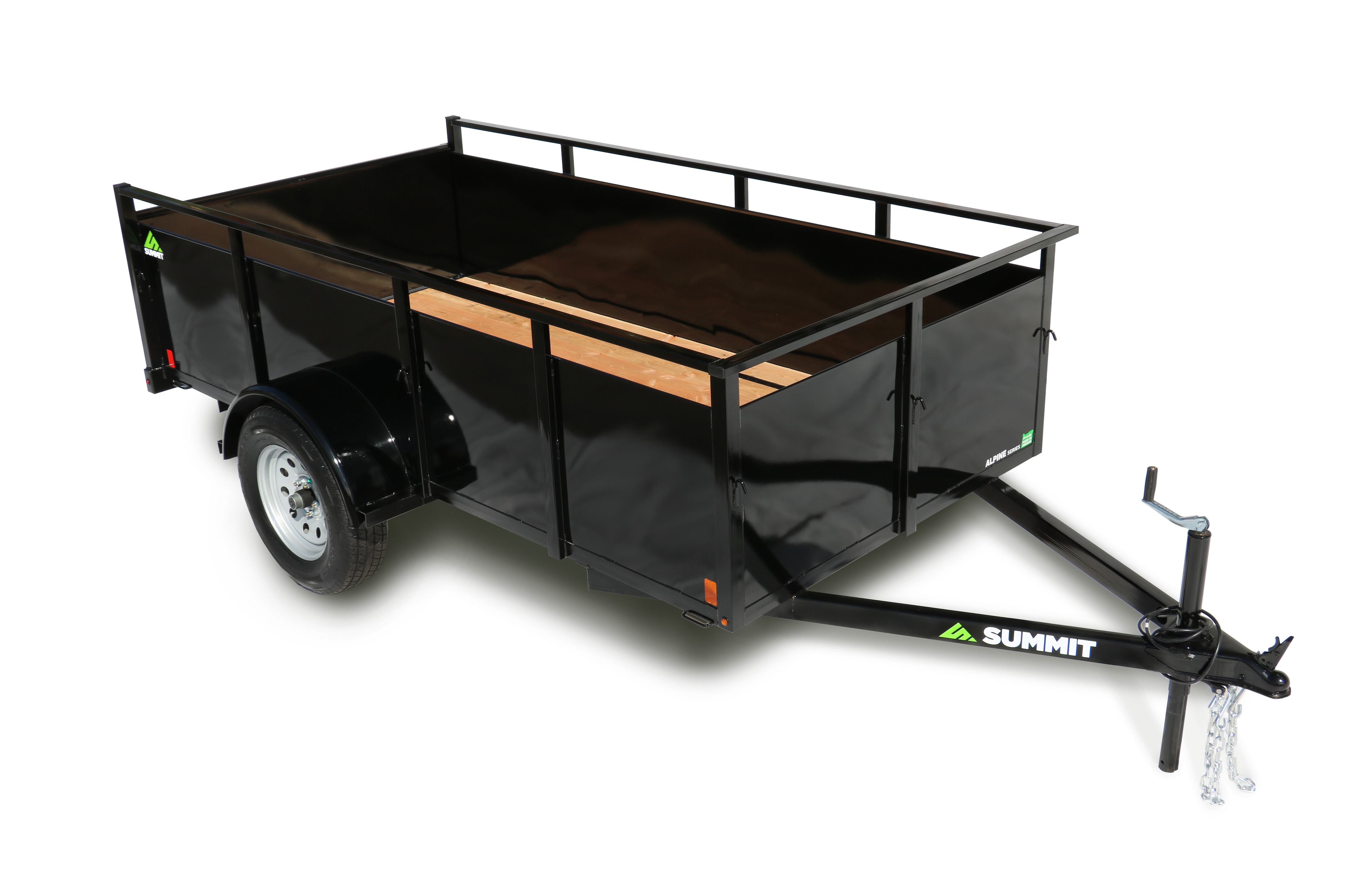

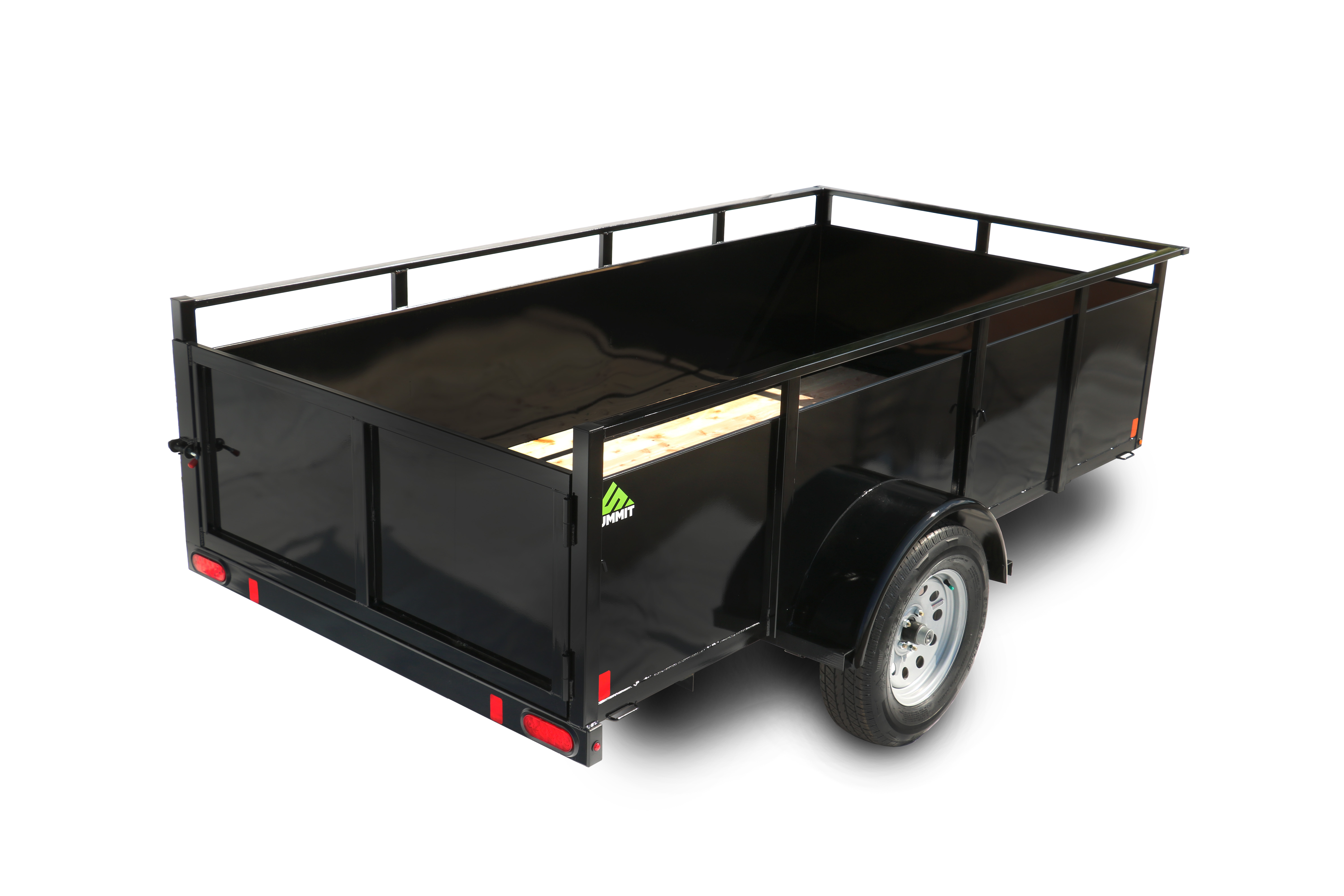

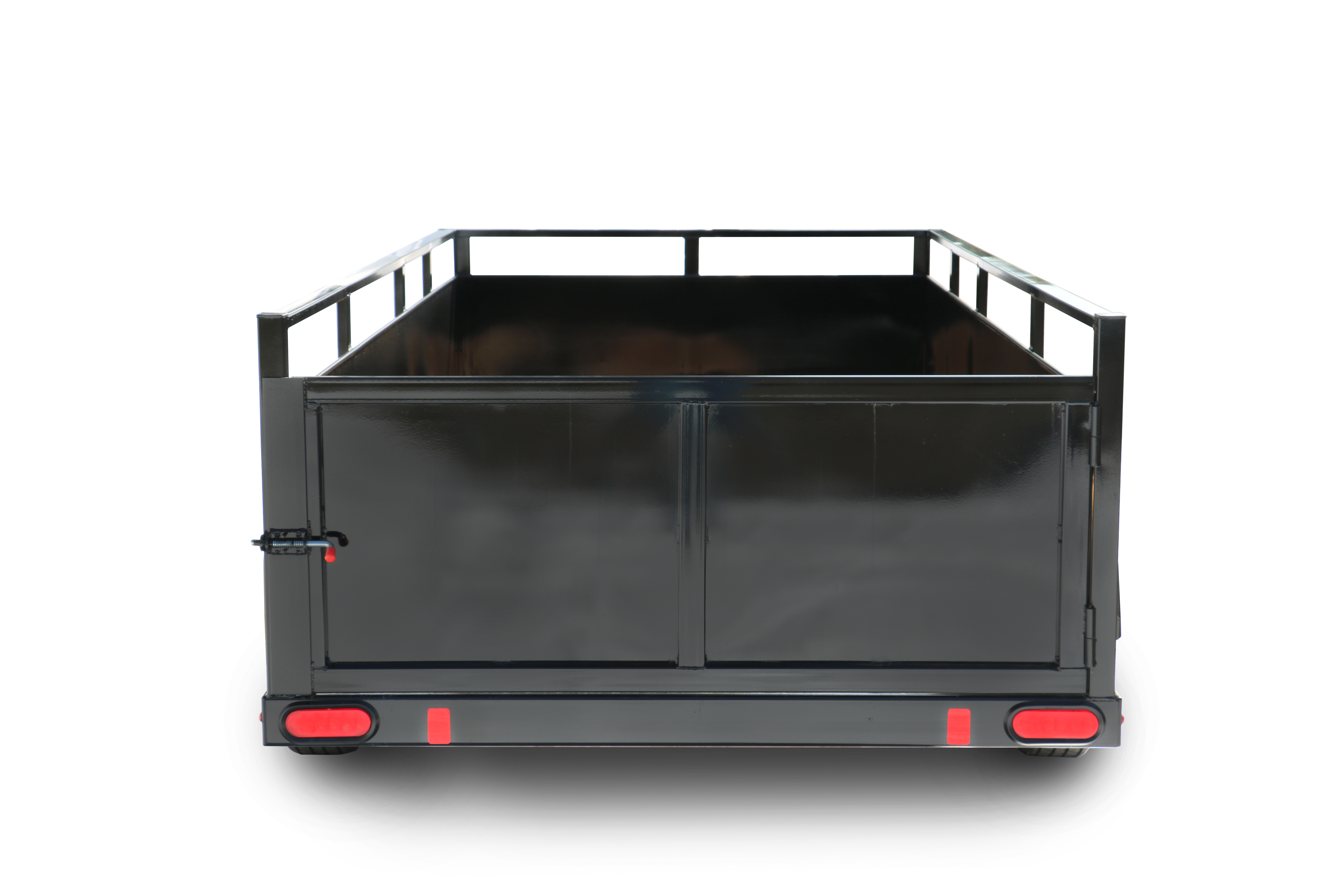

Alpine Utility – Swing Door

Alpine Utility – Swing Door

Alpine Utility - Swing Door
Alpine Utility - Swing Door
Alpine Utility - Swing Door
Alpine Utility - Swing Door Alpine Utility - Swing Door Alpine Utility - Swing Door

STANDARD FEATURES

Coupler StyleA-FrameFender TypeSmooth
Ball Size2"Tire SizeST 205/75R15C
Saftey Chains1/4" w/ Safety LatchBolt Pattern5 on 4.5
Jack2K A-FrameTire TypeSteel Belted Radials (Nitrogen Filled)
Plug4 WayTire PSI50#
Tongue3" TubingTire Weight Rating1820#
Main Frame2 x 2 x 1/8" AngleLighting (Clearance)LED Bullet
X-members2 x 2 x 1/8" AngleLighting (Stop)Sealed LED (10 Diode)
Axles3500#Decking2x6 Doug Fir (Premium)
GVWR2990#Paint TypePolyurethane
BrakesOptionalPaint ColorHigh Gloss Black or Charcoal Metallic
Side PanelSmoothWarranty3 Year Structural (Limited)
Ramp1.5 x 1.5 Tubing

ACCESSORIES & OPTIONS

Spare Mount (Welded)Spare Tire
Spare Mount (Removable)Pressure Treated Decking
Brakes

SPECIFICATIONS AND PRICING

ModelAU408SA-SDAU508SA-SDAU510SA-SDAU610SA-SDAU612SA-SD
Tongue Length45 1/2"46 1/2"46 1/2"49"49"
Interior Length97"97"120 3/4"120 3/4"144 1/2"
Interior Width49 1/4"59 1/2"59 1/2"71 1/2"71 1/2"
Overall Width67 7/8"78"78"90 1/4"90 1/4"
Overall Length144"145"168 3/4"171 1/4"195 1/4"
Deck Height18 1/2"18 1/2"18 1/2"18 1/2"18 1/2"
GVWR2,9902,9902,9902,9902,990
Curb Weight *7457608308761,166
Payload Capacity2,2452,2302,1602,1141,824

* Weights shown are estimates for base models without options
