FlatbedCascade7,000 lb.

Cascade Series 4″ Flatbeds 7K

*Cascade Series 4″ Flatbed 7K

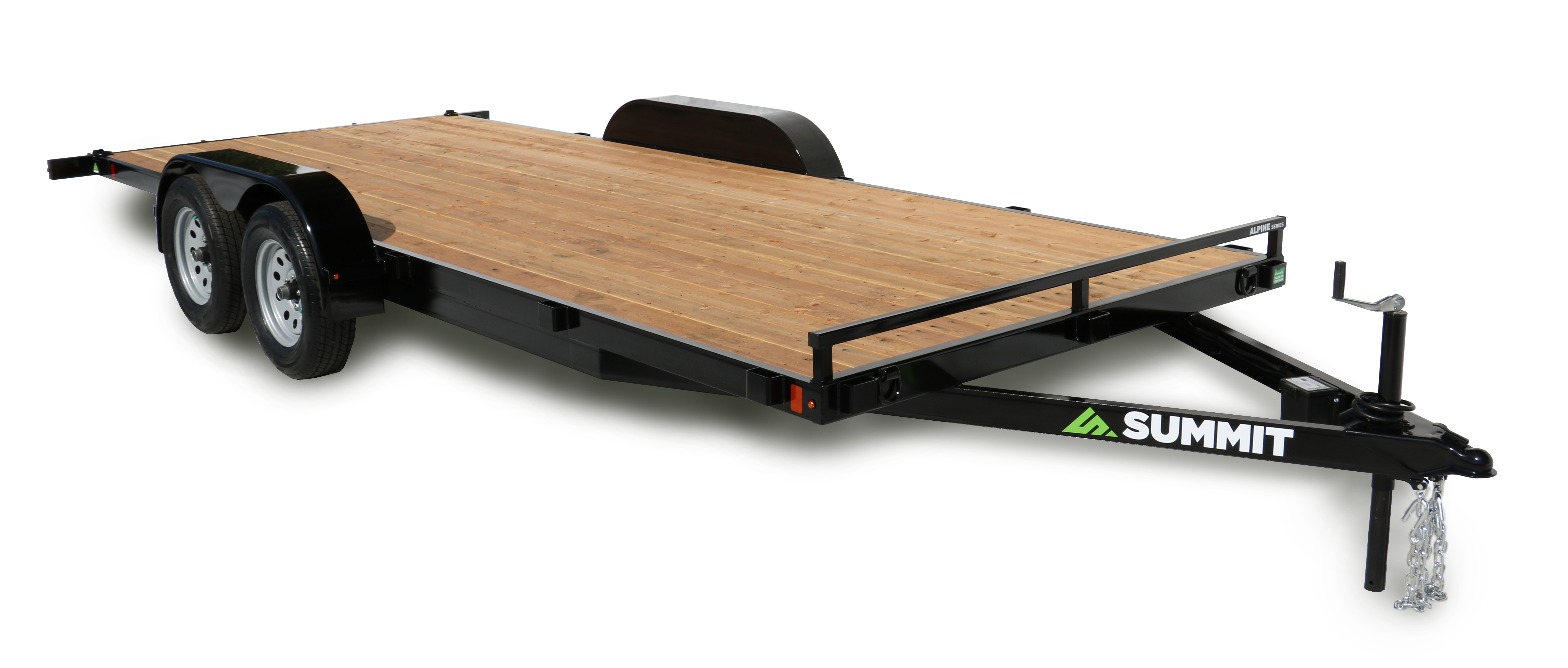

Alpine Flatbed 7K (2) web

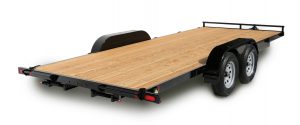

Alpine Flatbed 7K (9) web

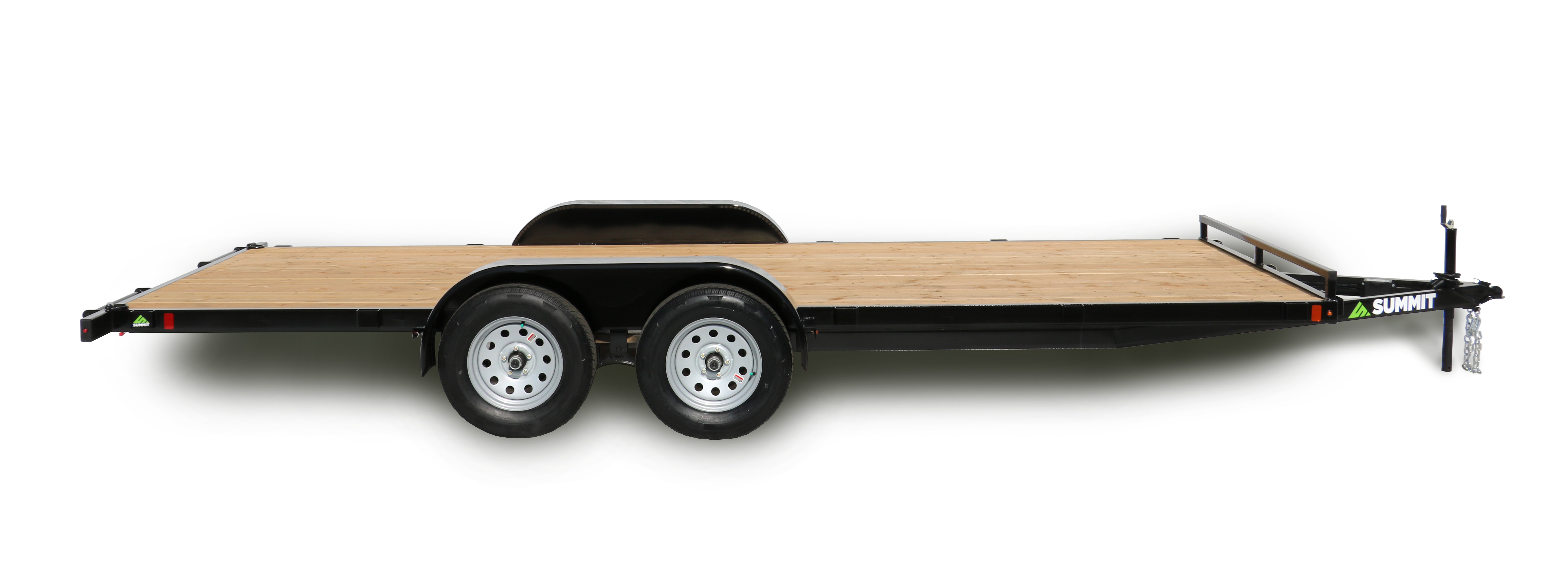

Alpine Flatbed 7K (6) web
Alpine Flatbed 7K (2) web Alpine Flatbed 7K (9) web Alpine Flatbed 7K (6) web

STANDARD FEATURES

Coupler StyleA-FrameFender Type Teardrop (Smooth)
Ball Size2 5/16"Tire SizeST 205/75R15C
Saftey Chains5/16" w/ Safety LatchBolt Pattern5 on 4.5
Jack2K A-FrameTire TypeSteel Belted Radials (Nitrogen Filled)
Plug7 Way RVTire PSI50#
Tongue4" Tube (Full Wrap)Tire Weight Rating1820#
Main Frame4 Channel Lighting (Clearance)LED Bullet
X-members2"Channel (18" on Center)Lighting (Stop)Sealed LED (24 Diode)
Axles3500#Decking2x6 Doug Fir (Premium)
BrakeElectricPaint TypePolyurethane
Brake Size10" x 2.25"Paint ColorHigh Gloss Black or Charcoal Metallic
Ramps5' Ramps (Channel)WarrantyLifetime Structural (Limited)
D-Rings4 - 1/2"

ACCESSORIES & OPTIONS

Spare Mount (Welded)Spare Tire
Spare Mount (Removable)Pressure Treated Decking
Removable FendersRear Stabilizer Jacks

SPECIFICATIONS AND PRICING

ModelC4FB714TA2C4FB716TA2C4FB718TA2
Tongue Length49"49"49"
Deck Length170"194"218"
Deck Width83"83"83"
Overall Width102"102"102"
Overall Length222 1/4"246 1/4"270 1/4"
Fender Height9 1/8"9 1/8"9 1/8"
Deck Height20"20"20"
GVWR7,0007,0007,000
Curb Weight *1,6231,7721,921
Payload Capacity5,3775,2285,079

* Weights shown are estimates for base models without options
