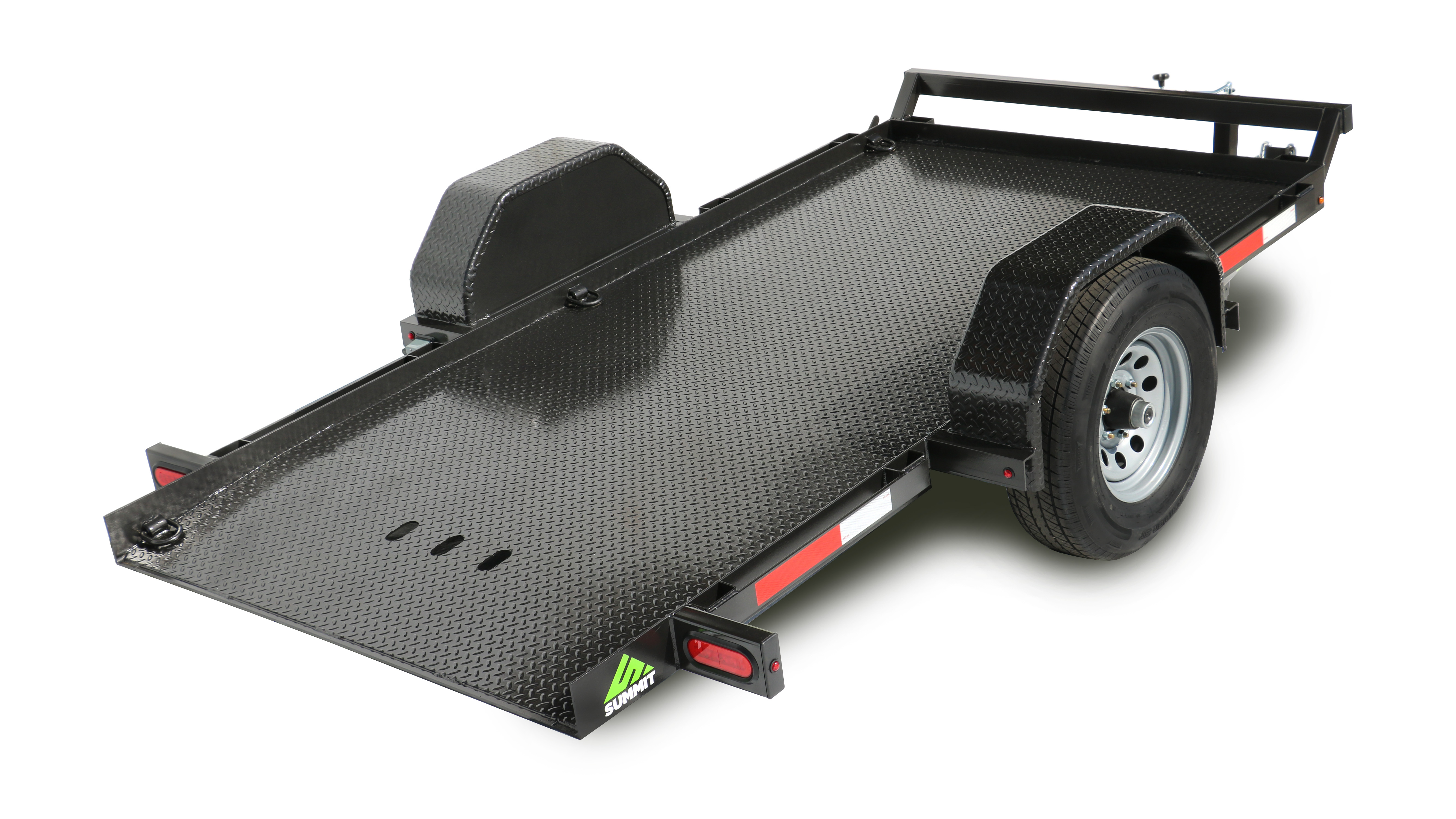

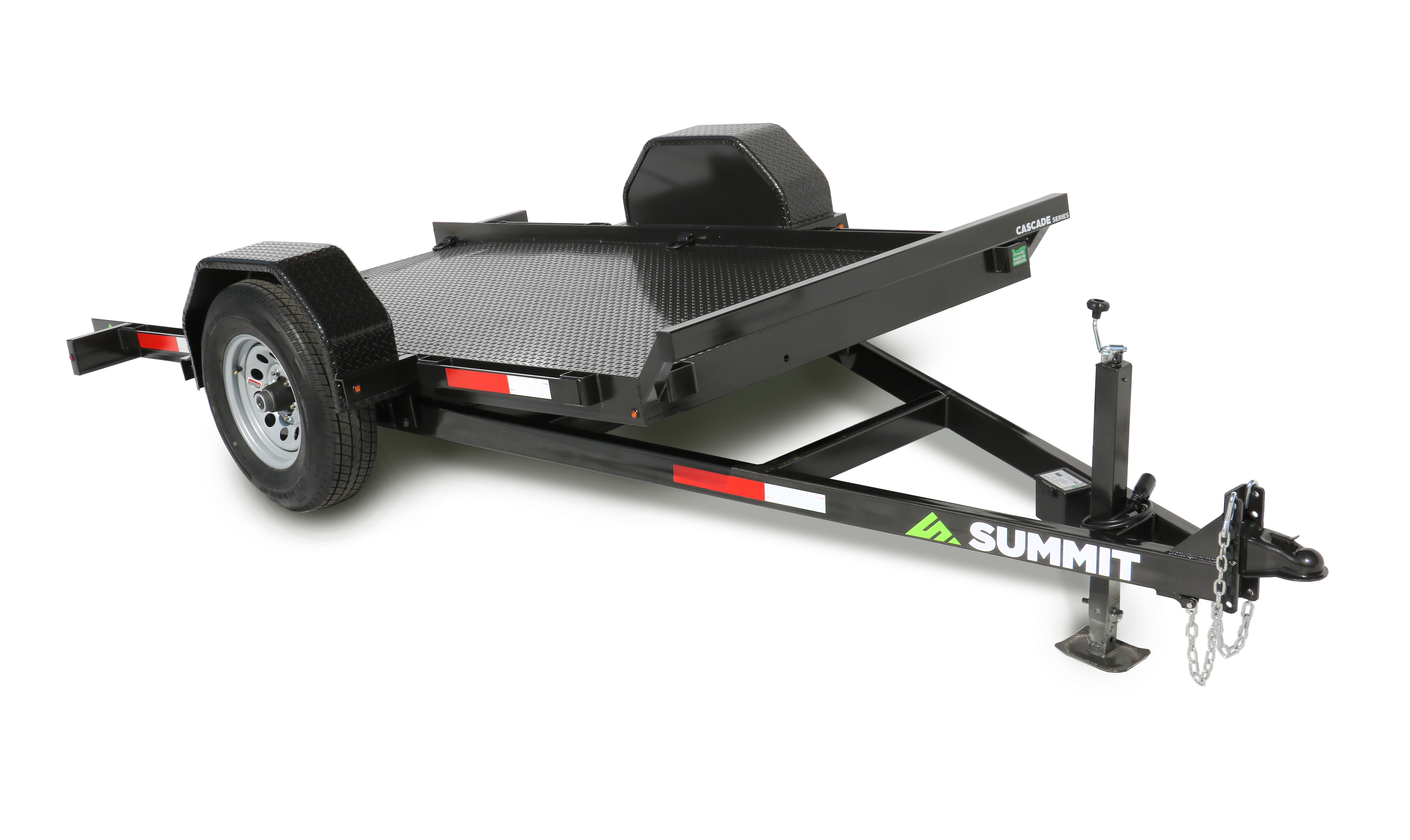

Cascade Series SA Pan Tiltbed
STANDARD FEATURES
| Coupler Style | Adjustable (5 Position) | Fender Type | Diamond Plate |
| Ball Size | 2 5/16" | Tire Size | ST 225/75R15D |
| Saftey Chains | 5/16" w/ Safety Latch | Bolt Pattern | 6 on 5.5 |
| Jack | 7K Drop Leg | Tire Type | Steel Belted Radials (Nitrogen Filled) |
| Plug | 7 Way RV | Tire PSI | 65# |
| Tongue | 4" Tube | Tire Weight Rating | 2540# |
| Main Frame | 5" x 3 1/2" Angle | Lighting (Clearance) | LED Bullet |
| X-members | 2" Channel (18" on Center) | Lighting (Stop) | Sealed LED (24 Diode) |
| Axles | 5200# (Torsion) | Decking | 3/16" Steel (Diamond Plate) |
| Brakes | Electric | Paint Type | Polyurethane |
| Hyd. Cylinder | Dual w/Lockout Value | Paint Color | High Gloss Black or Charcoal Metallic |
| D-Rings | 5/8" (6) | Warranty | Lifetime Structural (Limited) |
ACCESSORIES & OPTIONS
| Spare Mount (Welded) | Spare Tire |
| Spare Mount (Removable) | 7K Axle |
SPECIFICATIONS AND PRICING
| Model | CPTB510SA3 | CPTB610SA3 | CPTB612SA3 | CPTB710SA3 | CPTB712SA3 |
| Tongue Length | 54 1/2' | 56" | 56" | 56" | 56" |
| Interior Length | 121" | 145" | 169" | 145" | 169" |
| Interior Width | 59 1/2" | 71 1/2" | 71 1/2" | 81 1/2" | 81 1/2" |
| Overal Width | 80" | 92" | 92" | 102" | 102" |
| Overall Length | 175 1/2" | 201" | 225" | 201" | 225" |
| Fender Height | 15 1/4" | 15 1/4" | 15 1/4" | 15 1/4"q | 15 1/4" |
| Deck Height | 15" | 15" | 15" | 15" | 15" |
| GVWR | 5,200 | 5,200 | 5,200 | 5,200 | 5,200 |
| Curb Weight * | 1,740 | 1,793 | 1,843 | 1,895 | 1,948 |
| Payload Capacity | 3,460 | 3,407 | 3,357 | 3,305 | 3,252 |
* Weights shown are estimates for base models without options
