TiltbedCascade14,000 lb.

Cascade Series 6″ Split Tiltbed 14K

Cascade Series 6″ Split Tiltbed 14K

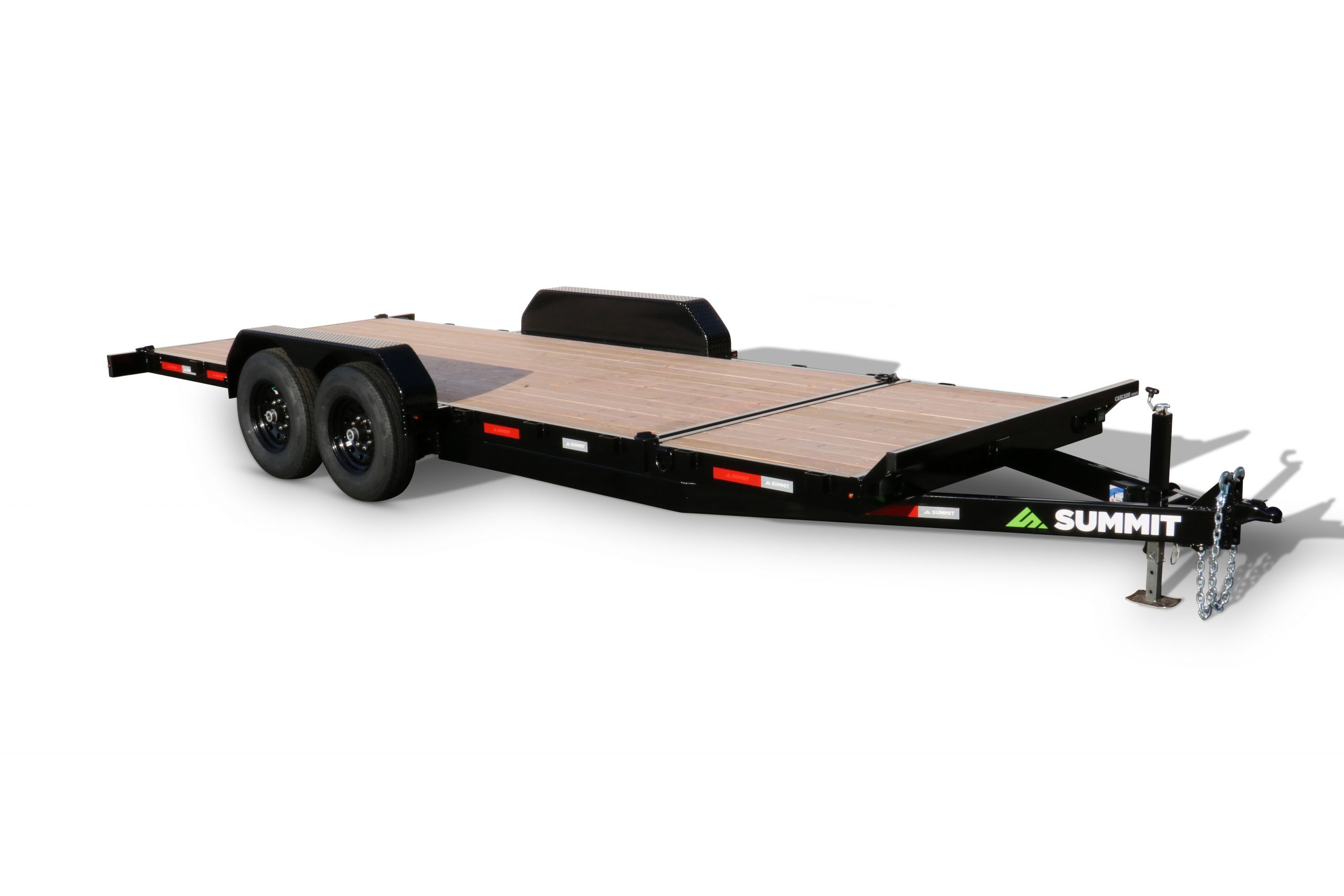

Cascade Split Tilt 14K (Front)) (1)

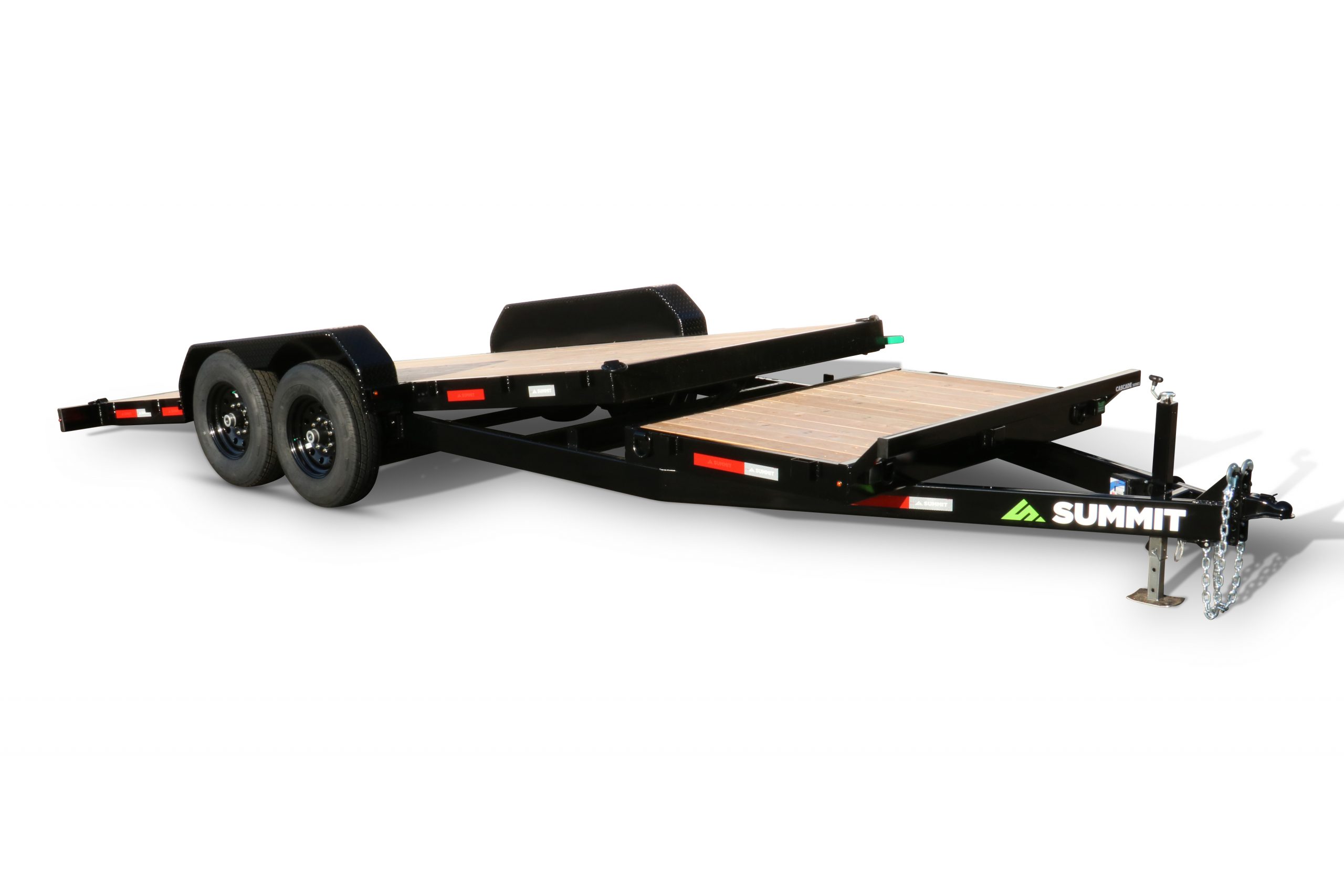

Cascade Split Tilt 14K (Front-Tilted) (5)

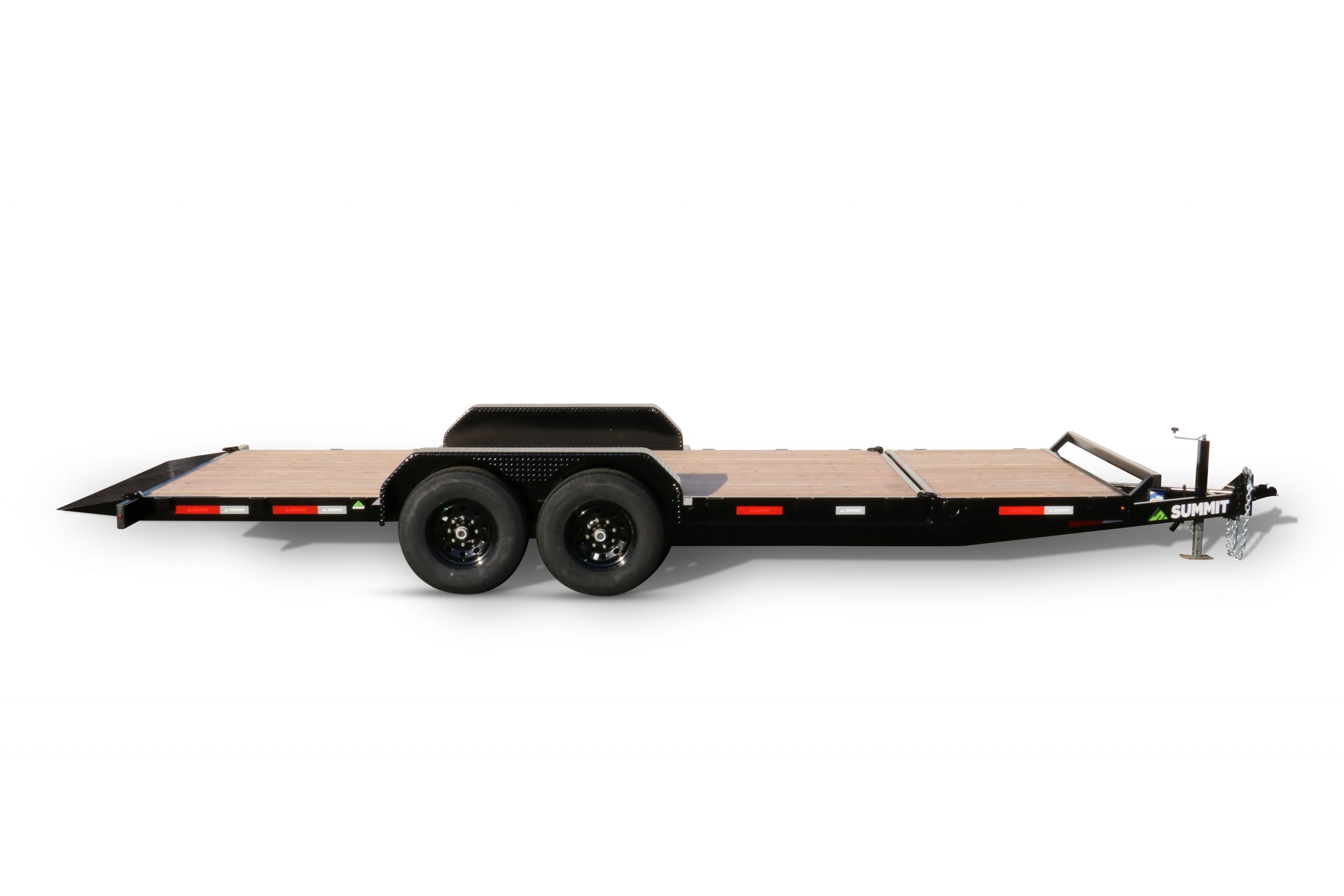

Cascade Split Tilt 14K (Side) (4)

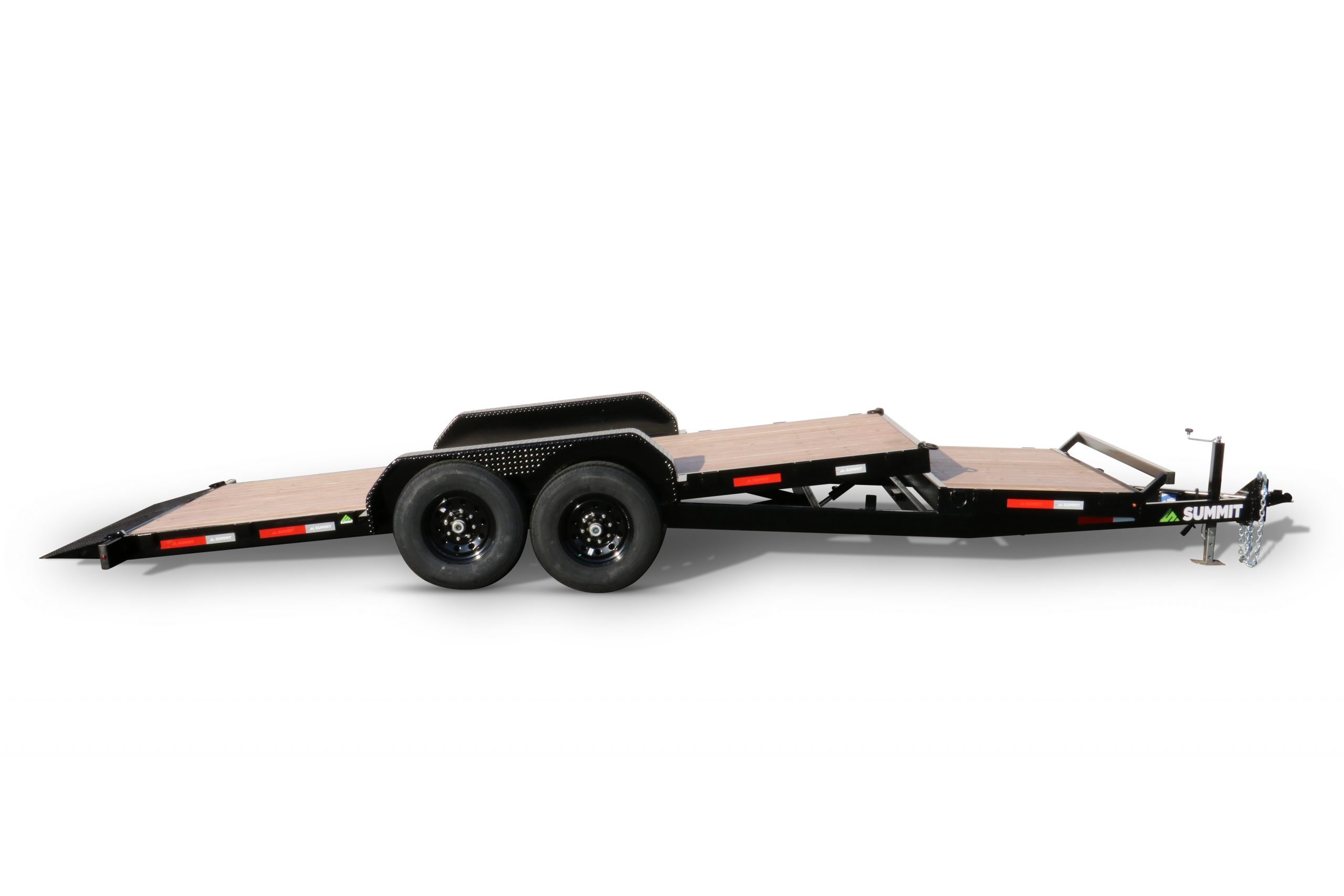

Cascade Split Tilt 14K (Side-Tilted) (8)

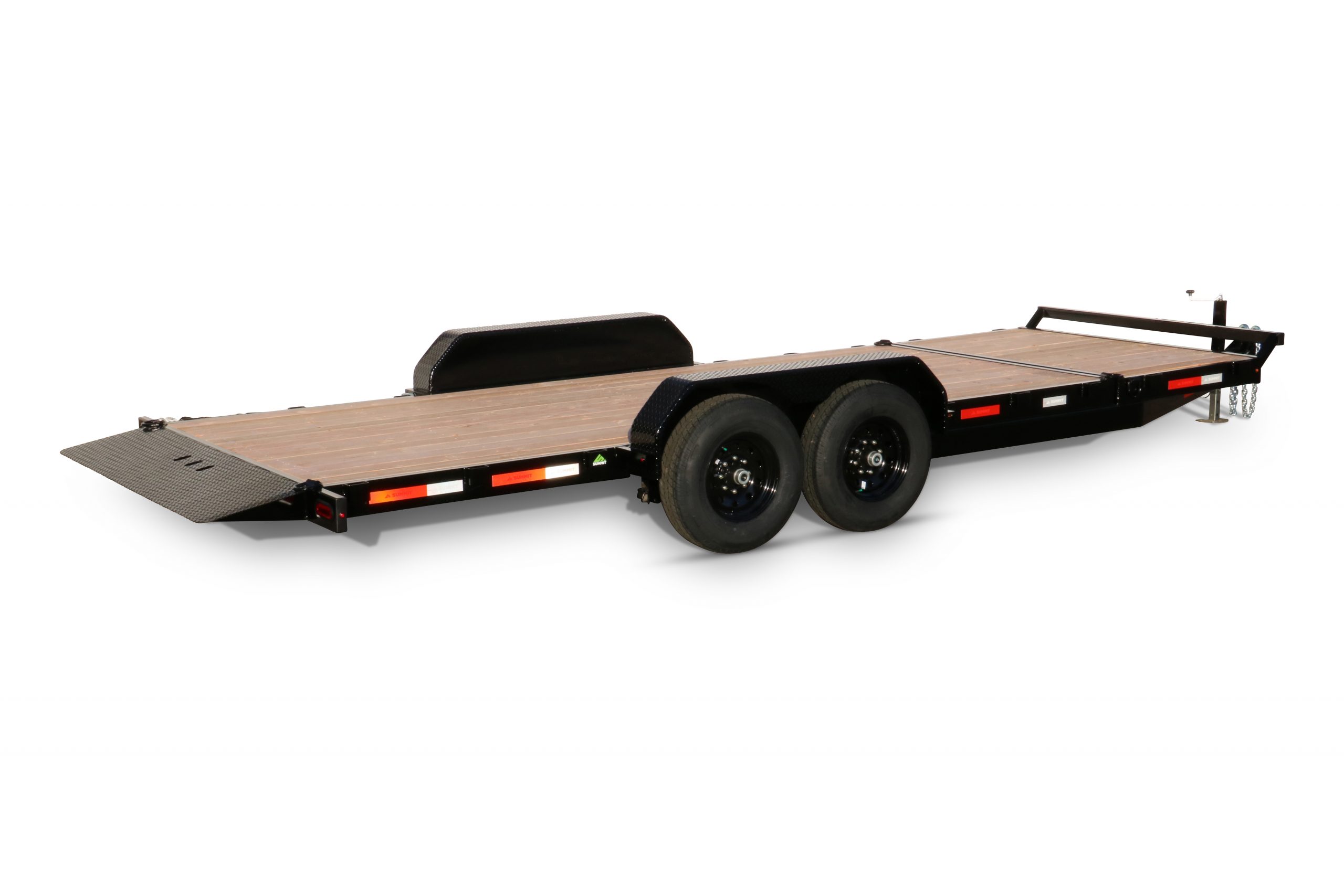

Cascade Split Tilt 14K (Rear) (11)

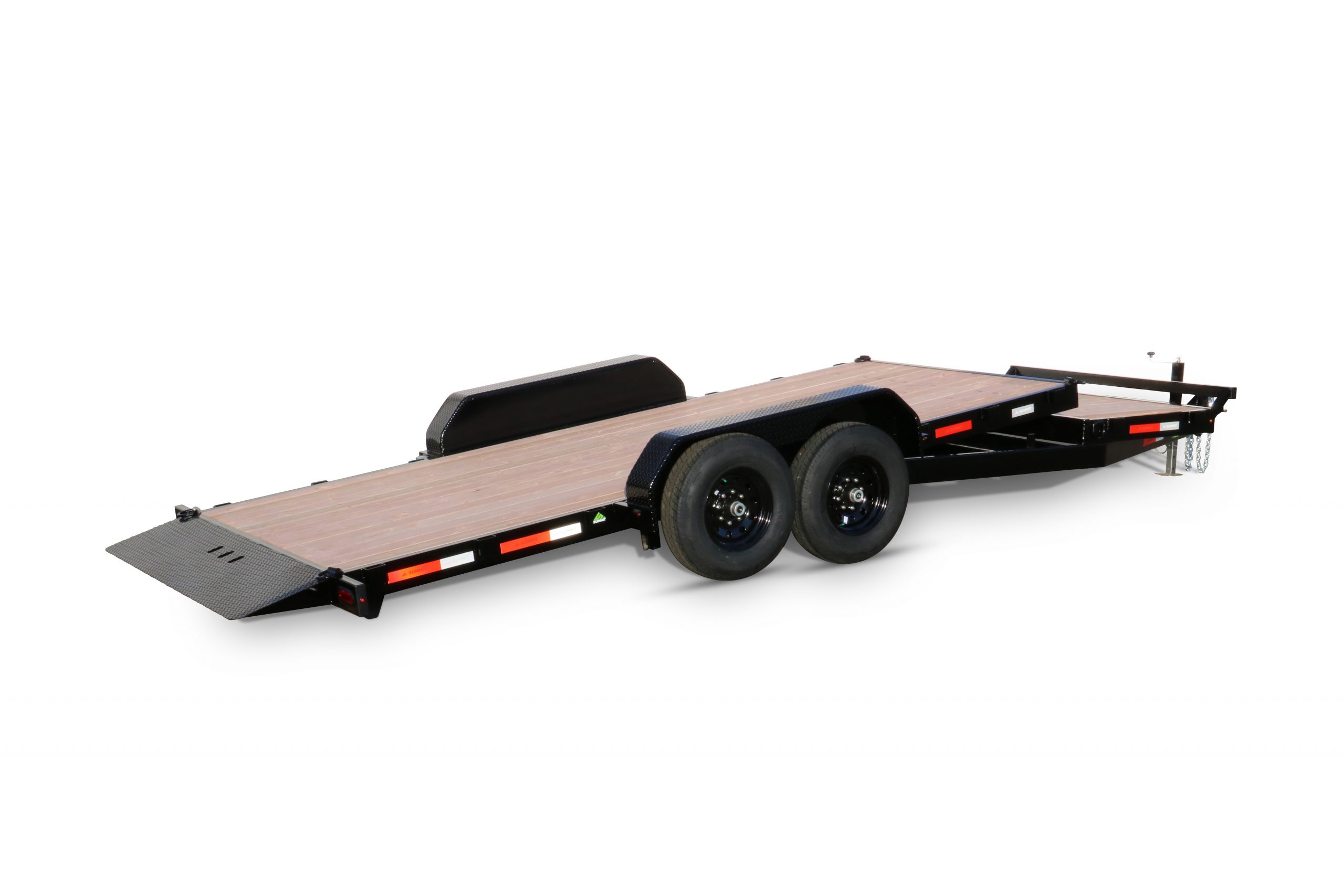

Cascade Split Tilt 14K (Rear-Tilted) (3)
Cascade Split Tilt 14K (Front)) (1) Cascade Split Tilt 14K (Front-Tilted) (5) Cascade Split Tilt 14K (Side) (4) Cascade Split Tilt 14K (Side-Tilted) (8) Cascade Split Tilt 14K (Rear) (11) Cascade Split Tilt 14K (Rear-Tilted) (3)

STANDARD FEATURES

Coupler StyleAdjustable (5 Position)Fender TypeTeardrop (Diamond Plate)
Ball Size2 5/16"Tire SizeST 235/80R16E
Saftey Chains3/8" w/Clevis LatchBolt Pattern8 on 6.5
Jack12K Drop LegTire TypeSteel Belted Radials (Nitrogen Filled)
Plug7 Way RVTire PSI80#
Tongue6" ChannelTire Weight Rating3520#
Main Frame6" ChannelLighting (Clearance)LED Bullet
X-members3" Channel (18" on Center)Lighting (Stop)Sealed LED (24 Diode)
Axles7000#Decking2x6 Doug Fir (Premium)
BrakeElectricPaint TypePolyurethane
Brake Size12" x 2"Paint ColorHigh Gloss Black or Charcoal Metallic
Rear Approach14 DegreeWarrantyLifetime Structural (Limited)
D-Rings8 - 5/8"

ACCESSORIES & OPTIONS

Spare Mount (Welded)Spare Tire
Spare Mount (Removable)Pressure Treated Decking
Removable Fenders2' Stationary, 4' Stationary (Std), 6' Stationary

SPECIFICATIONS AND PRICING

ModelC6STB718-2TA5C6STB720-4TA5C6STB722-4TA5
Tongue Length56"56"56"
Deck Length218"242"266"
Deck Width82 1/2"82 1/2"82 1/2"
Overall Width102"102"102"
Overall Length294 1/2"318 1/2"342 1/2"
Fender Height12"12"12"
Deck Height20"20"20"
GVWR14,00014,00014,000
Curb Weight *2,9063,0373,168
Payload Capacity11,09410,96310,832

* Weights shown are estimates for base models without options
