TiltbedDenali Pro14,000 lb.

Denali Pro Series Split Tiltbeds 14K

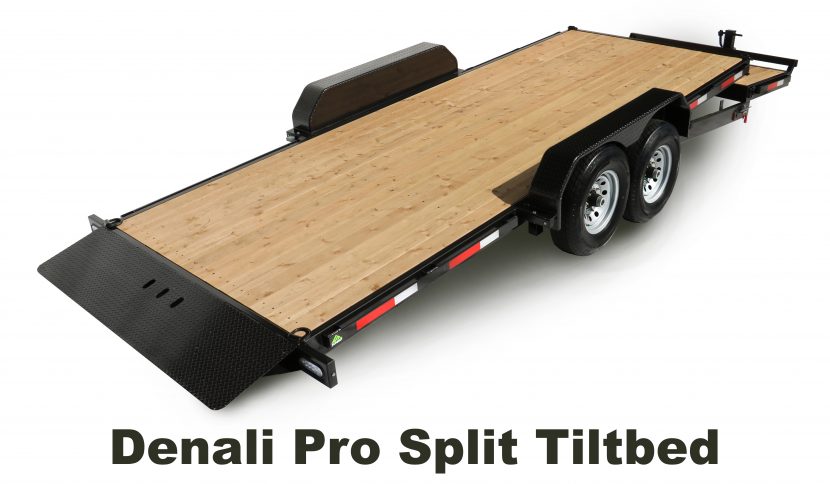

Denali Pro Series Split Tiltbed 14K

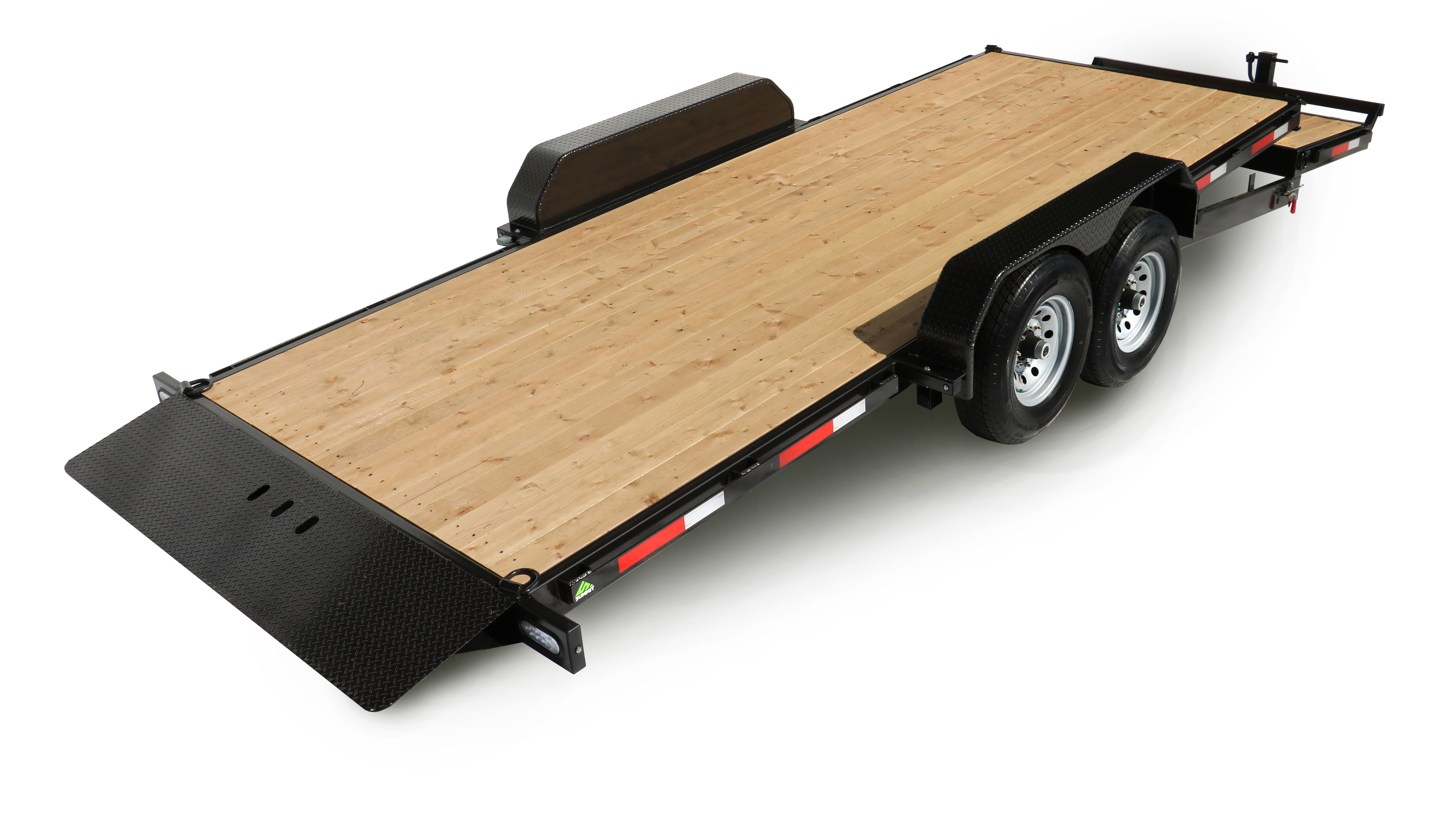

Denali Pro Split Tiltbed (1) web

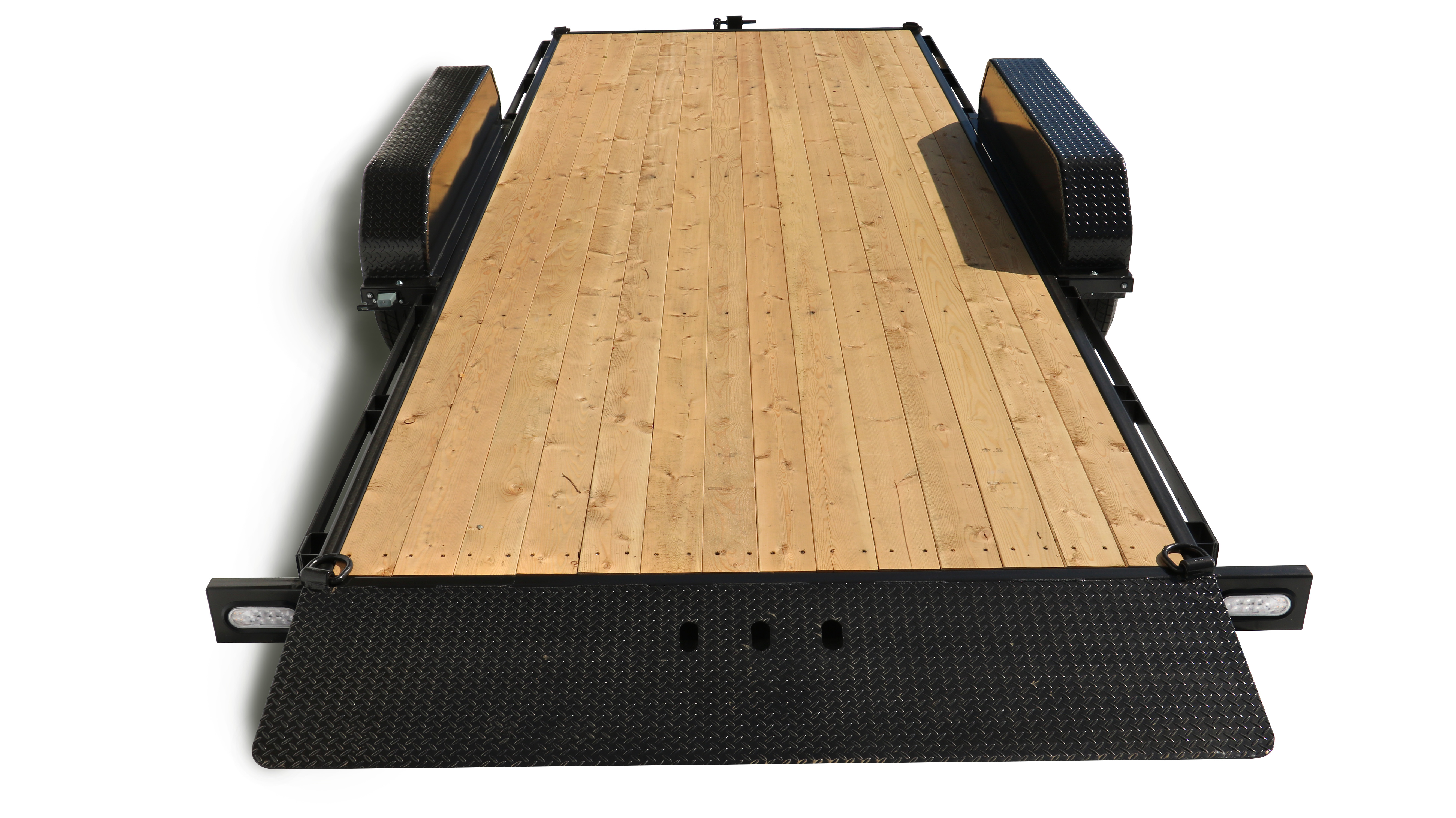

Denali Pro Split Tiltbed (3) web
Denali Pro Split Tiltbed (1) web Denali Pro Split Tiltbed (3) web

STANDARD FEATURES

Coupler StyleAdjustable (5 Position)Fender TypeTeardrop (Diamond Plate)
Ball Size2 5/16"Tire SizeST 235/80R16E
Saftey Chains3/8" w/Clevis LatchBolt Pattern8 on 6.5
Jack12K Drop LegTire TypeSteel Belted Radials (Nitrogen Filled)
Plug7 Way RVTire PSI80#
Tongue6" TubeTire Weight Rating3520#
Main Frame6" TubeLighting (Clearance)LED Bullet
X-members3" Channel (18" on Center)Lighting (Stop)Sealed LED "w/Backup" (30 Diode)
Axles7000#Decking2x6 Doug Fir (Premium)
BrakeElectricPaint TypePolyurethane
Brake Size12" x 2"Paint ColorHigh Gloss Black or Charcoal Metallic
Rear Approach14 DegreeWarrantyLifetime Structural (Limited)
D-Rings8 - 5/8"

ACCESSORIES & OPTIONS

Spare Mount (Welded)Spare Tire
Spare Mount (Removable)Pressure Treated Decking
Removable Fenders2' Stationary, 4' Stationary (Std), 6' Stationary

SPECIFICATIONS AND PRICING

ModelDPSTB718-2TA5DPSTB720-4TA5DPSTB722-4TA5
Tongue Length56"56"56"
Deck Length218"242"266"
Deck Width82 1/2"82 1/2"82 1/2"
Overall Width102"102"102"
Overall Length294 1/2"318 1/2"342 1/2"
Fender Height12"12"12"
Deck Height20"20"20"
GVWR14,00014,00014,000
Curb Weight *2,9063,0373,168
Payload Capacity11,09410,96310,832

* Weights shown are estimates for base models without options
