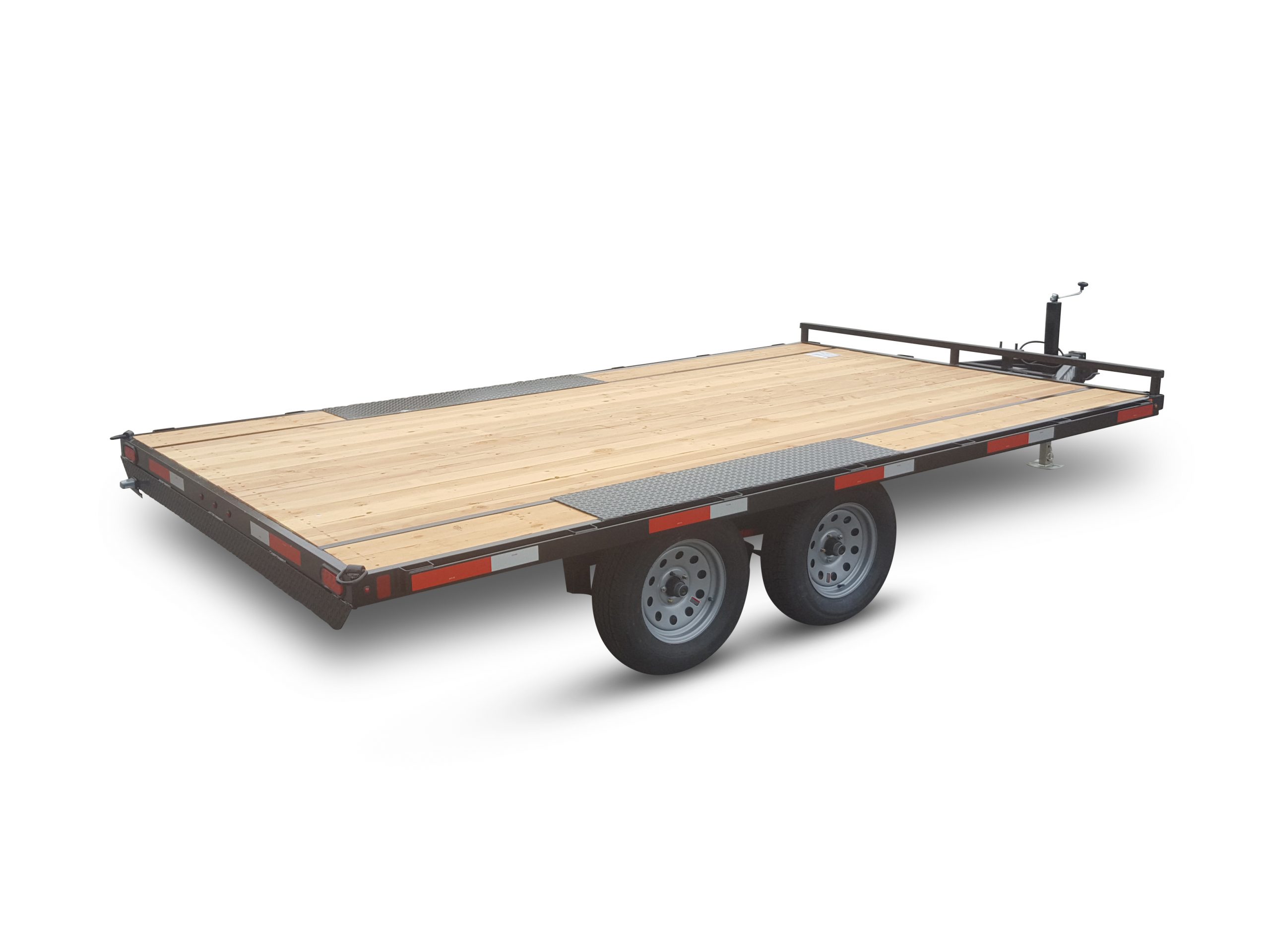

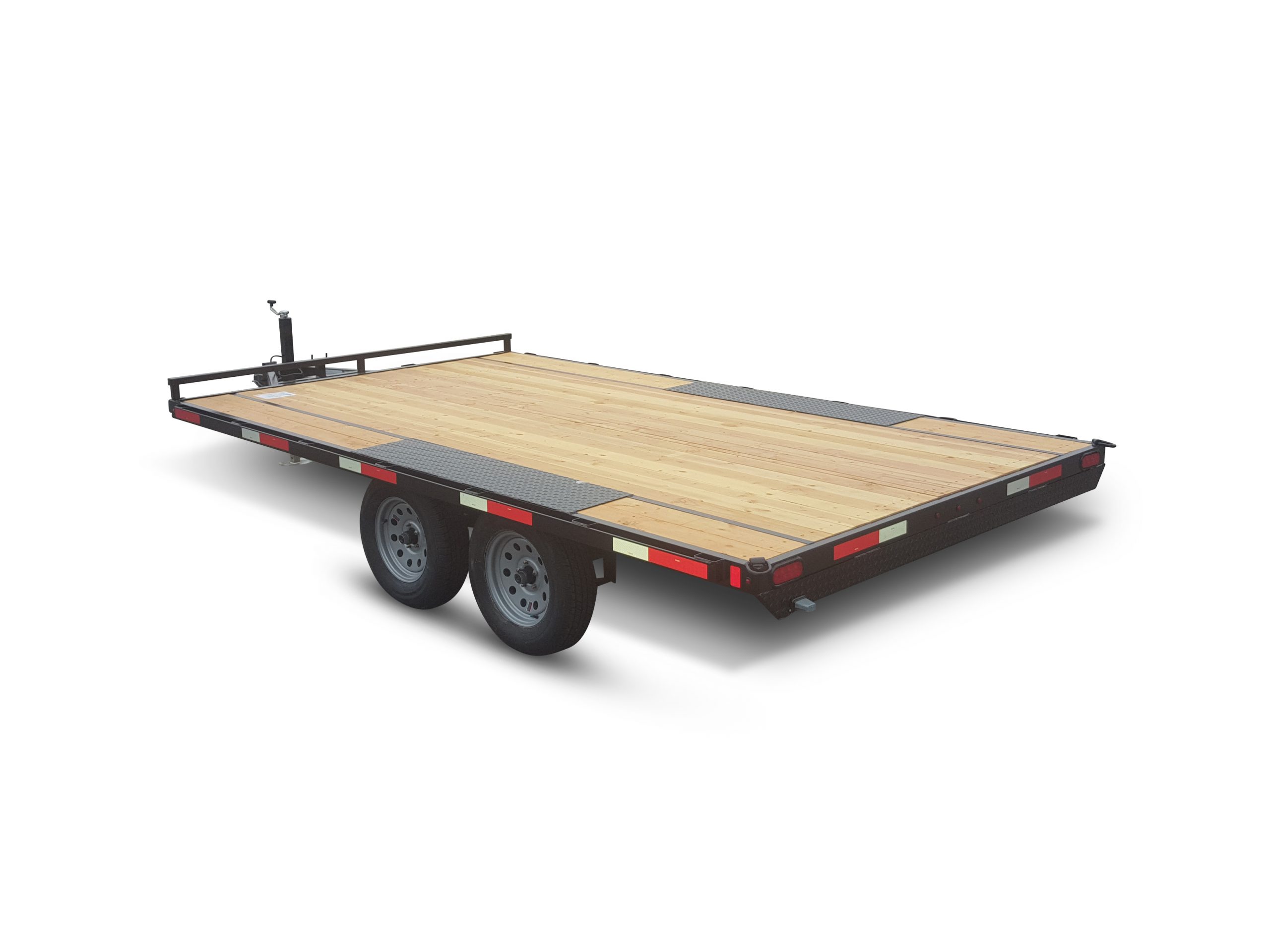

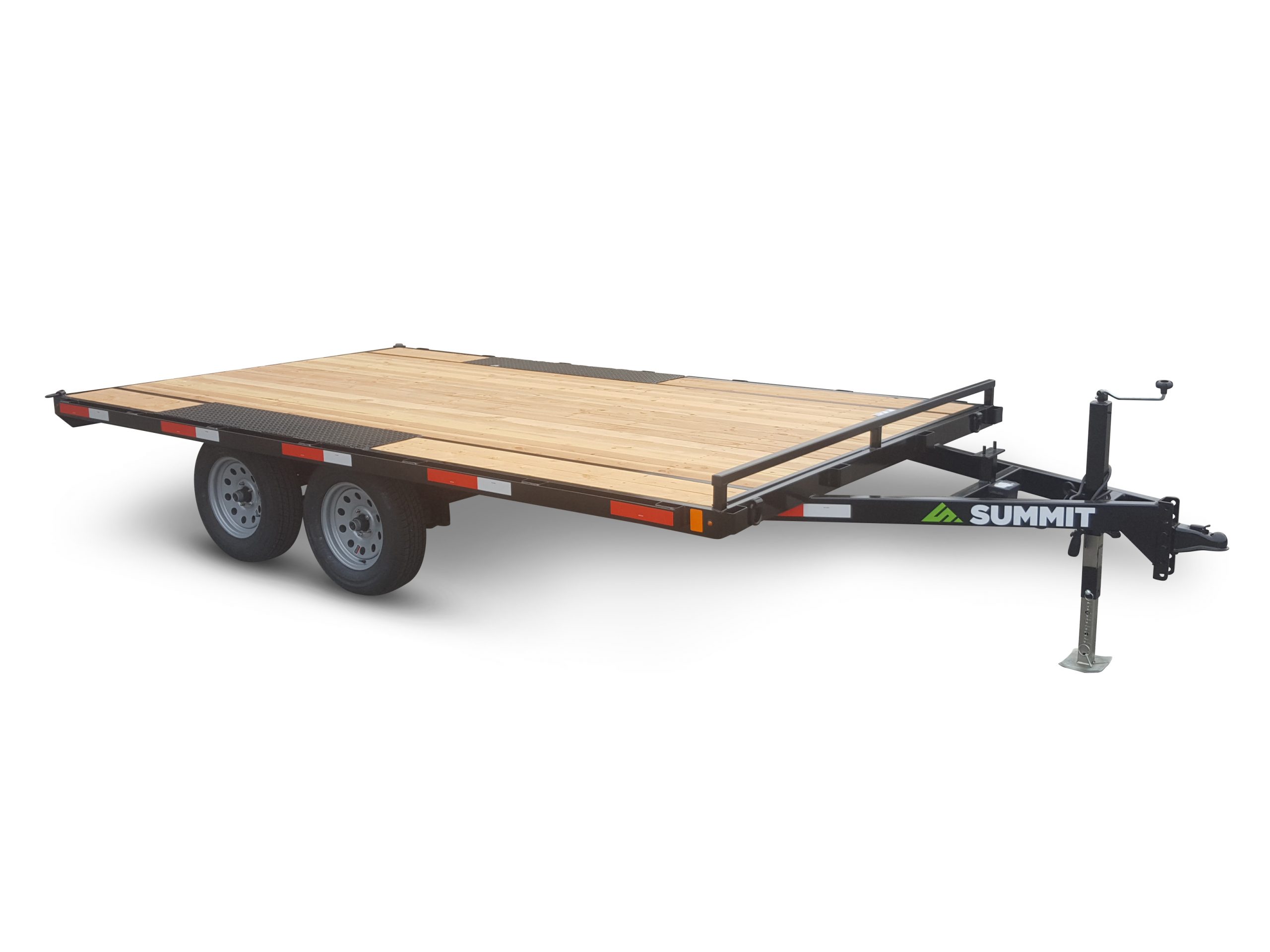

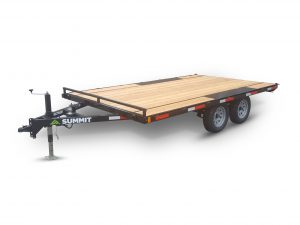

Alpine Series 4″ Deckover 7K
STANDARD FEATURES

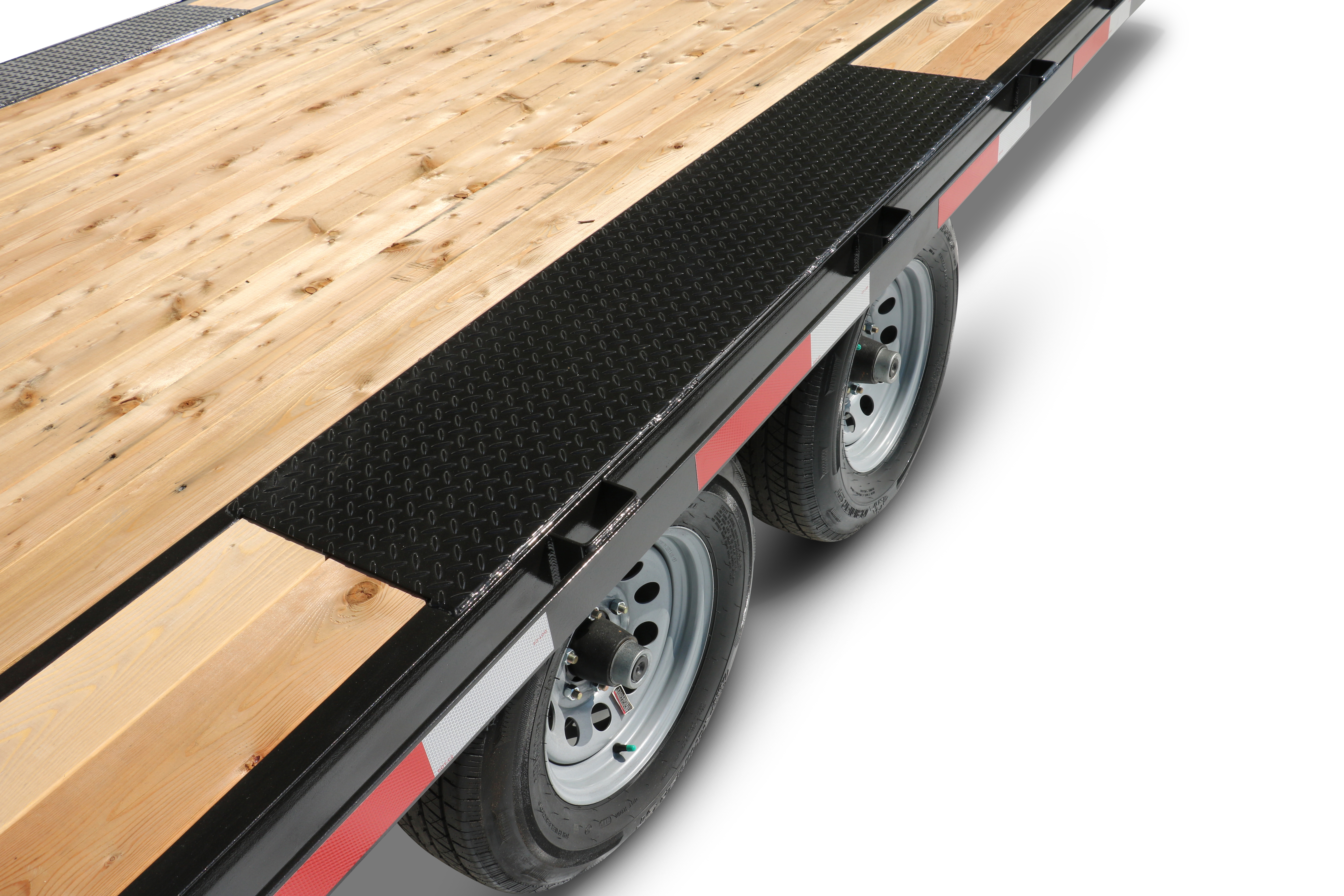

| Coupler Style | Adjustable (5 Position) | Fender Type | Flat Deck Plate (Diamond Plate) |
| Ball Size | 2 5/16" | Tire Size | ST 205/75R15C |
| Saftey Chains | 5/16" w/ Safety Latch | Bolt Pattern | 5 on 4.5 |
| Jack | 7K Drop | Tire Type | Steel Belted Radials (Nitrogen Filled) |
| Plug | 7 Way RV | Tire PSI | 50# |
| Tongue | 4" Channel | Tire Weight Rating | 1820# |
| Main Frame | 4" Tubing | Lighting (Clearance) | LED Bullet |
| X-members | 2 x 2 x 3/16" Angle | Lighting (Stop) | Sealed LED (10 Diode) |
| Upper Deck Frame | 4" Channel | Decking | 2 x 6 Doug Fir (Premium) |
| Axles | 3500# | Paint Type | Polyurethane |
| Brake | Electric | Paint Color | High Gloss Black or Charcoal Metallic |
| Brake Size | 10" x 2.25" | Warranty | 3 Year Structural (Limited) |
| D-Rings | 4 - 1/2" | Ramps | Optional |
ACCESSORIES & OPTIONS
| Spare Mount (Welded) | Spare Tire |
| Spare Mount (Removable) | Pressure Treated Decking |
| 7' Ramps |
SPECIFICATIONS AND PRICING
| Model | ADO8514TA2 | ADO8516TA2 | ADO8518TA2 | ADO8520TA2 |
| Tongue Length | 53" | 53" | 53" | 53" |
| Deck Length | 169 1/2" | 193 1/2" | 217 1/2" | 241 1/2" |
| Deck Width | 97 1/2" | 97 1/2" | 97 1/2" | 97 1/2" |
| Overall Width | 102" | 102" | 102" | 102" |
| Overall Length | 225 3/4" | 249 3/4" | 273 3/4" | 297 3/4" |
| Fender Height | n/a | n/a | n/a | n/a |
| Deck Height | 30" | 30" | 30" | 30" |
| GVWR | 7,000 | 7,000 | 7,000 | 7,000 |
| Curb Weight * | 1,814 | 1,989 | 2,164 | 2,339 |
| Payload Capacity | 5,186 | 5,011 | 4,836 | 4,661 |
* Weights shown are estimates for base models without options
