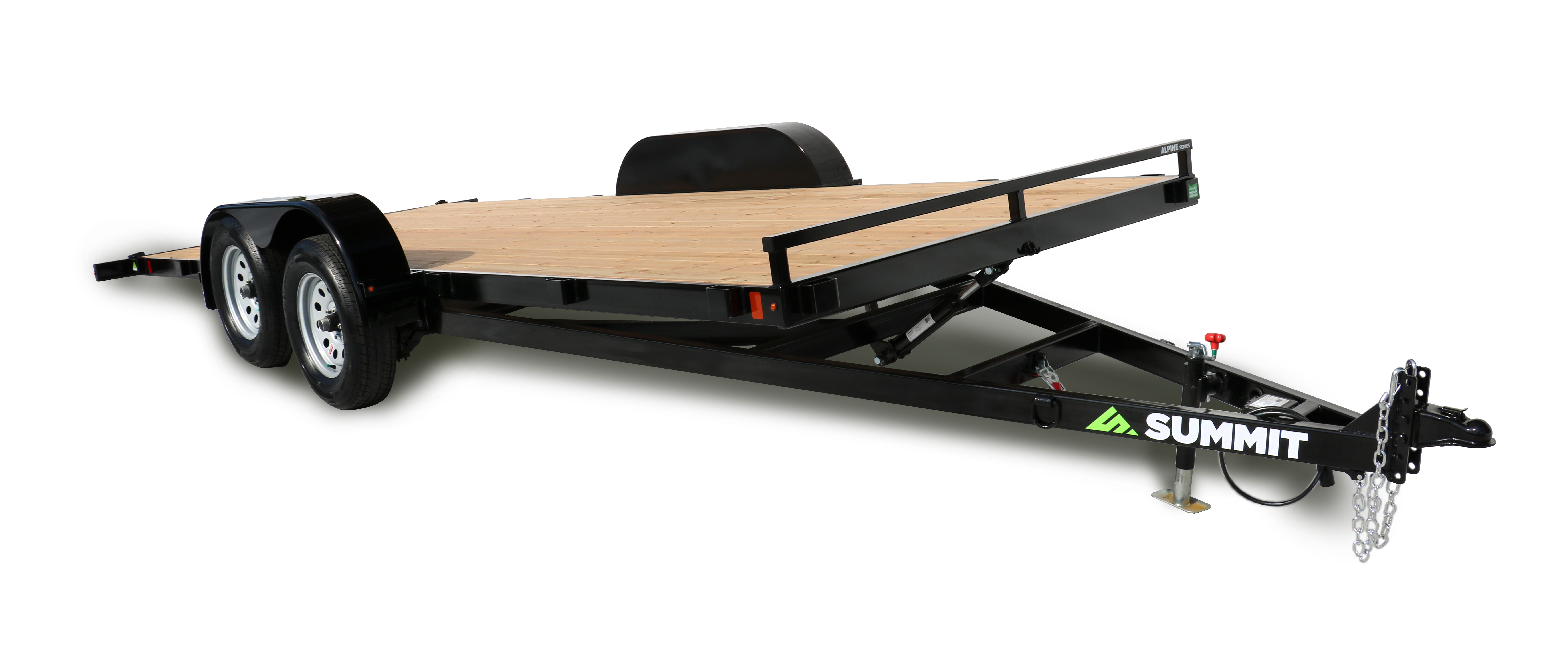

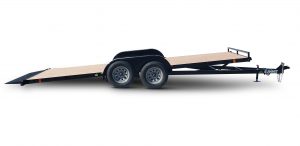

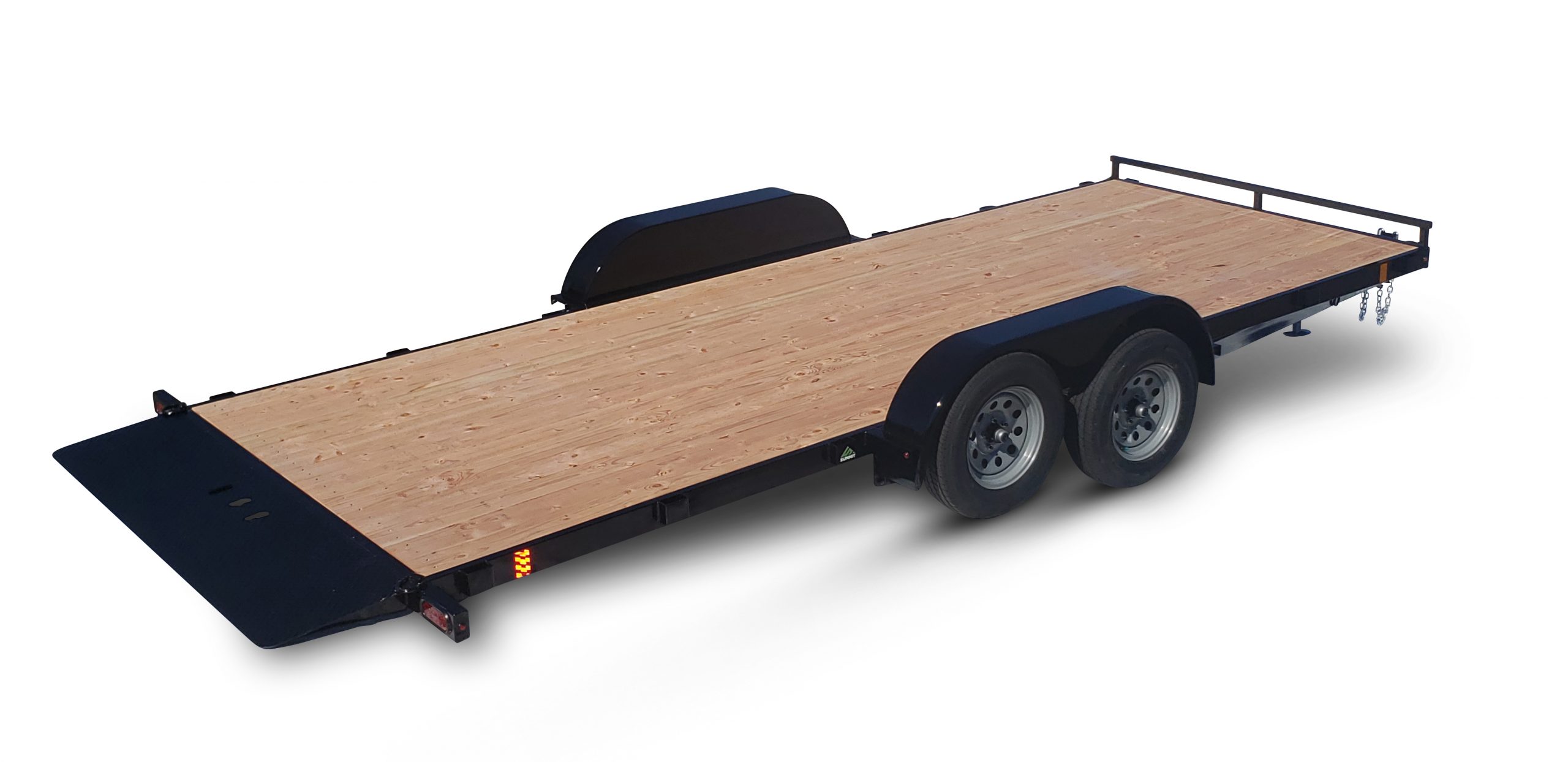

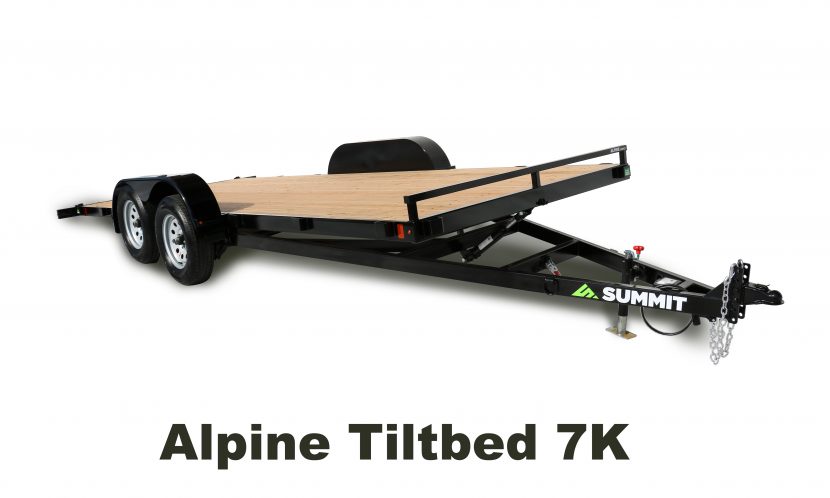

Alpine Series 4″ Tiltbed 7K
STANDARD FEATURES
| Coupler Style | Adjustable (5 Position) | Fender Type | Teardrop (Smooth) |
| Ball Size | 2 5/16" | Tire Size | ST 205/75R15C |
| Saftey Chains | 5/16" w/ Safety Latch | Bolt Pattern | 5 on 4.5 |
| Jack | 5K Swing | Tire Type | Steel Belted Radials (Nitrogen Filled) |
| Plug | 7 Way RV | Tire PSI | 50# |
| Tongue | 4" Tube | Tire Weight Rating | 1820# |
| Main Frame | 4" Channel | Lighting (Clearance) | LED Bullet |
| X-members | 2 x 2 x 3/16" Angle (24" Center) | Lighting (Stop) | Sealed LED (10 Diode) |
| Axles | 3500# | Decking | 2x6 Doug Fir (Premium) |
| Brake | Electric | Paint Type | Polyurethane |
| Brake Size | 10" x 2.25" | Paint Color | High Gloss Black or Charcoal Metallic |
| Rear Approach | 14 Degree | Warranty | 3 Year Structural (Limited) |
| D-Rings | 4 - 1/2" |
ACCESSORIES & OPTIONS
| Spare Mount (Welded) | Spare Tire |
| Spare Mount (Removable) | Pressure Treated Decking |
| Removable Fenders |
SPECIFICATIONS AND PRICING
| Model | A4TB714TA2 | A4TB716TA2 | A4TB718TA2 | A4TB720TA2 |
| Tongue Length | n/a | 56" | 56" | n/a |
| Deck Length | n/a | 194" | 218" | n/a |
| Deck Width | n/a | 84" | 84" | n/a |
| Overall Width | n/a | 102" | 102" | n/a |
| Overall Length | n/a | 270" | 294" | n/a |
| Fender Height | n/a | 12" | 12" | n/a |
| Deck Height | n/a | 16" | 16" | n/a |
| GVWR | n/a | 7,000 | 7,000 | n/a |
| Curb Weight * | n/a | 1,805 | 1,850 | n/a |
| Payload Capacity | n/a | 5,195 | 5,150 | n/a |
* Weights shown are estimates for base models without options
