TiltbedCascade7,000 lb.

Cascade Series 4″ Tiltbeds 7K

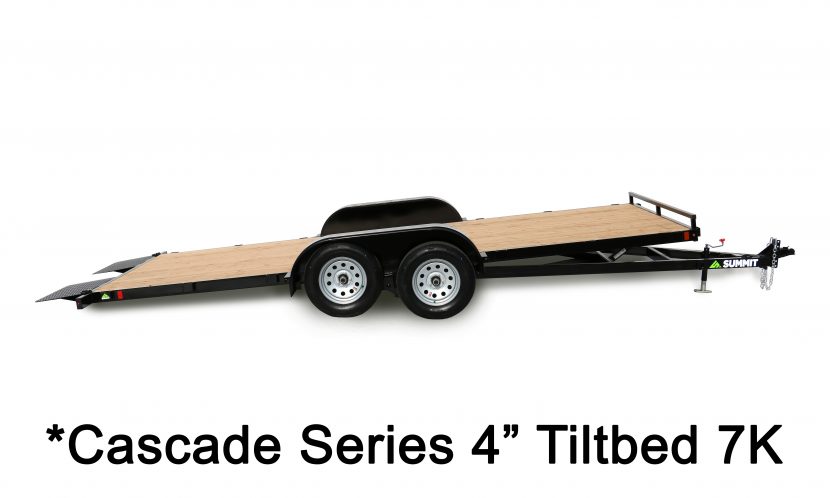

*Cascade Series 4″ Tiltbed 7K

Alpine Tiltbed 7K (20) web
Alpine Tiltbed 7K (25) web
Alpine Tiltbed 7K (28) web
Alpine Tiltbed 7K (20) web Alpine Tiltbed 7K (25) web Alpine Tiltbed 7K (28) web

STANDARD FEATURES

Coupler StyleAdjustable (5 Position)Fender TypeTeardrop (Smooth)
Ball Size2 5/16"Tire SizeST 205/75R15C
Saftey Chains5/16" w/ Safety LatchBolt Pattern5 on 4.5
Jack5K SwingTire TypeSteel Belted Radials (Nitrogen Filled)
Plug7 Way RVTire PSI50#
Tongue4" TubeTire Weight Rating1820#
Main Frame4" ChannelLighting (Clearance)LED Bullet
X-members2" Channel (18" on Center)Lighting (Stop)Sealed LED (24 Diode)
Axles3500#Decking2x6 Doug Fir (Premium)
BrakeElectricPaint TypePolyurethane
Brake Size10" x 2.25"Paint ColorHigh Gloss Black or Charcoal Metallic
Rear Approach14 DegreeWarrantyLifetime Structural (Limited)
D-Rings4 - 1/2"

ACCESSORIES & OPTIONS

Spare Mount (Welded)Spare Tire
Spare Mount (Removable)Pressure Treated Decking
Removable Fenders

SPECIFICATIONS AND PRICING

ModelC4TB714TA2C4TB716TA2C4TB718TA2C4TB720TA2
Tongue Lengthn/a56"56"n/a
Deck Lengthn/a194"218"n/a
Deck Widthn/a84"84"n/a
Overall Widthn/a102"102"n/a
Overall Lengthn/a270"294"n/a
Fender Heightn/a12"12"n/a
Deck Heightn/a16"16"n/a
GVWRn/a7,0007,000n/a
Curb Weight *n/a5,1955,150n/a
Payload Capacityn/a5,2855,186n/a

* Weights shown are estimates for base models without options
