TiltbedCascade10,000 lb.

Cascade Series 5″ Tiltbeds 10K

Cascade Series 5″ Tiltbed 10K

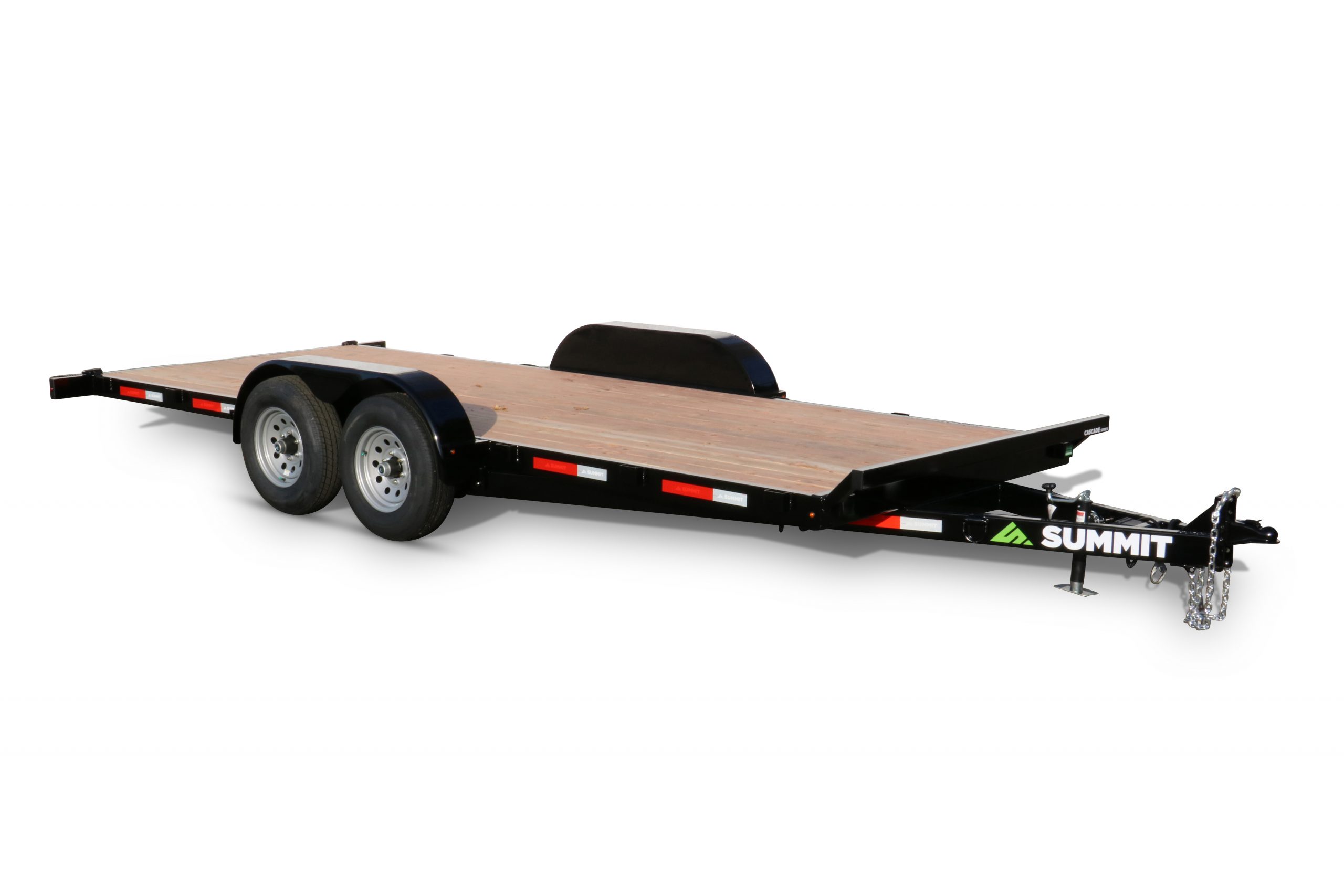

Cacasde 10K Tilt (Front) (9)

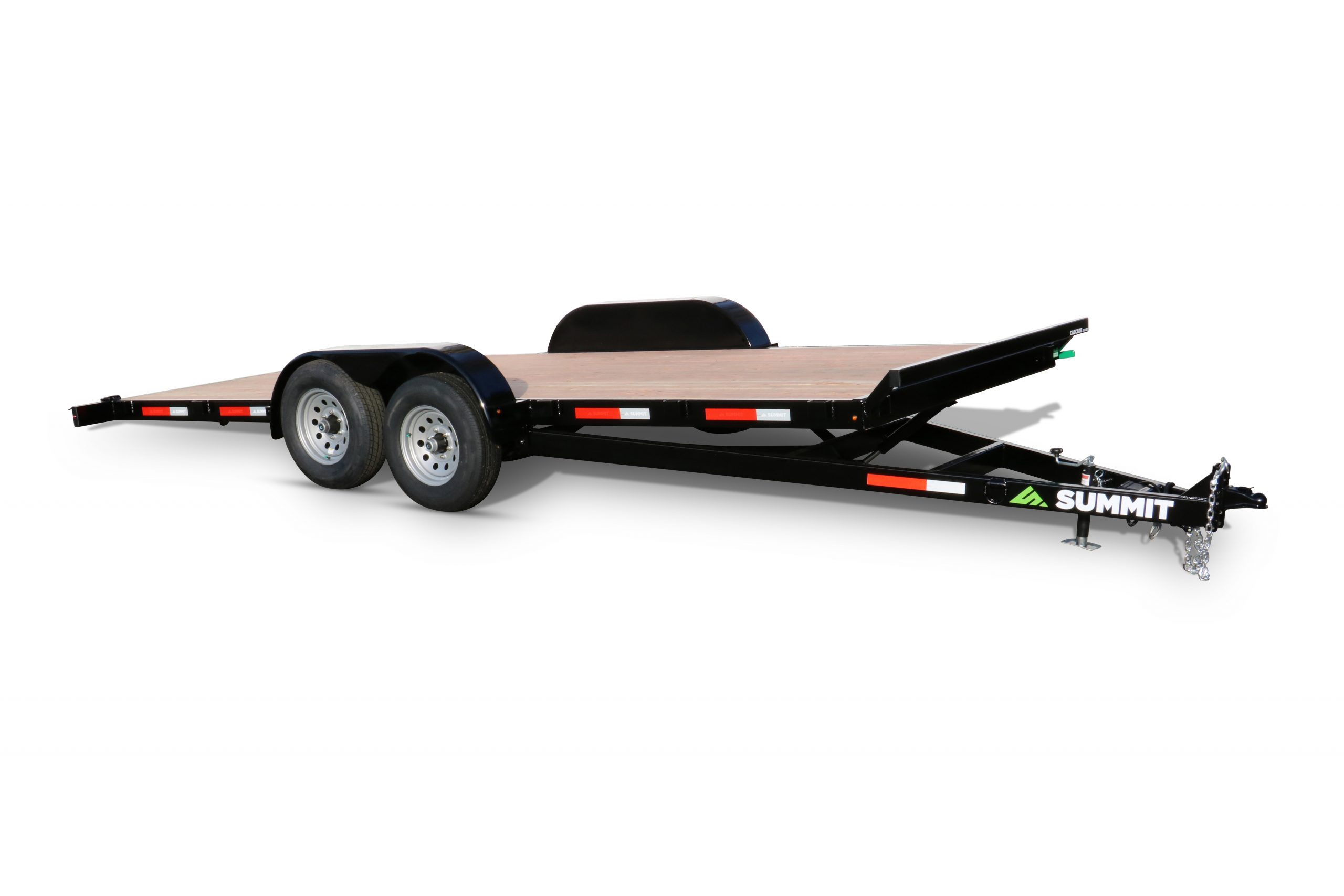

Cascade 10K Tilt (Front-Tilted) (3)

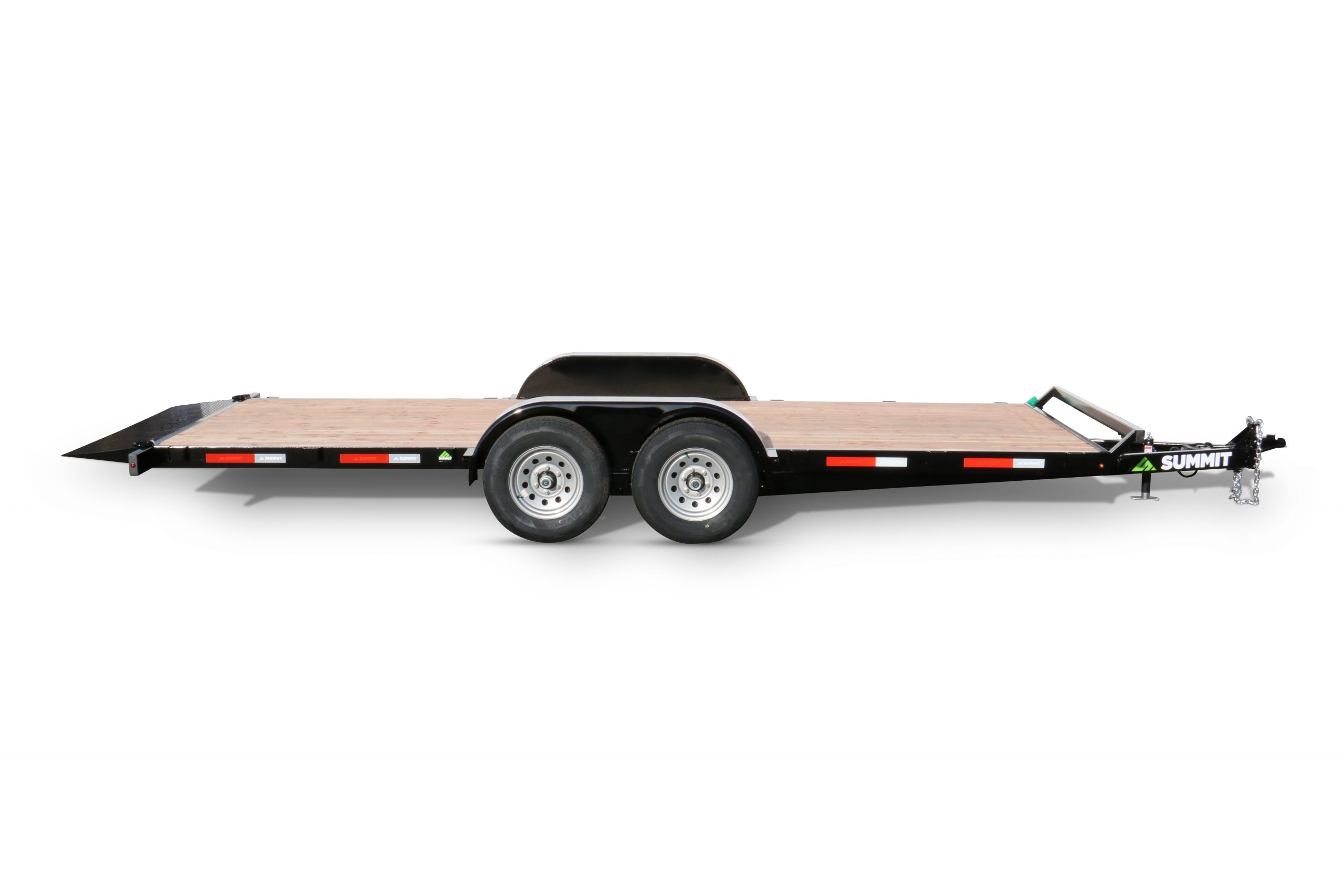

Cascade 10K Tilt (Side) (10)

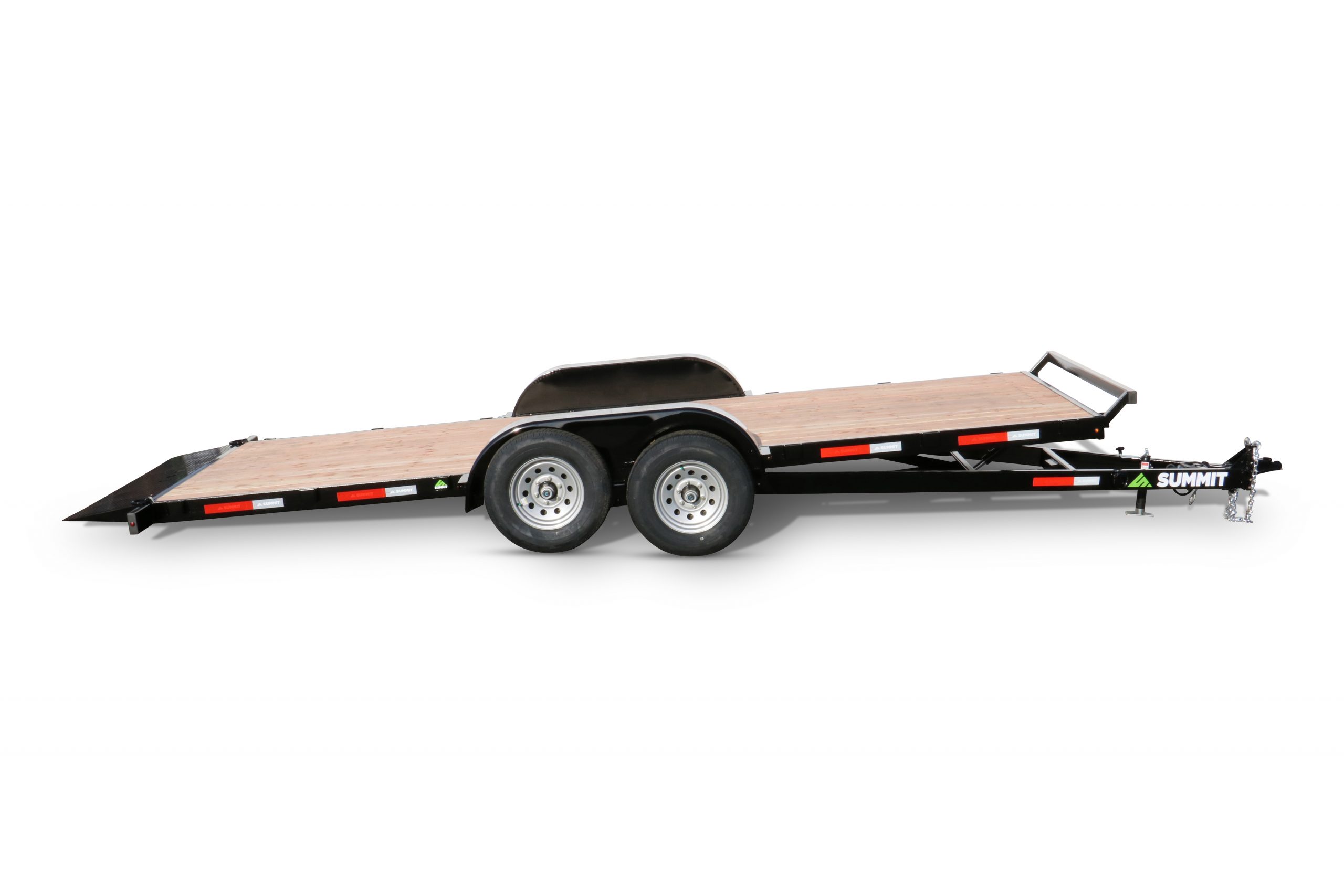

Cascade 10K Tilt (Side-Tilted) (2)

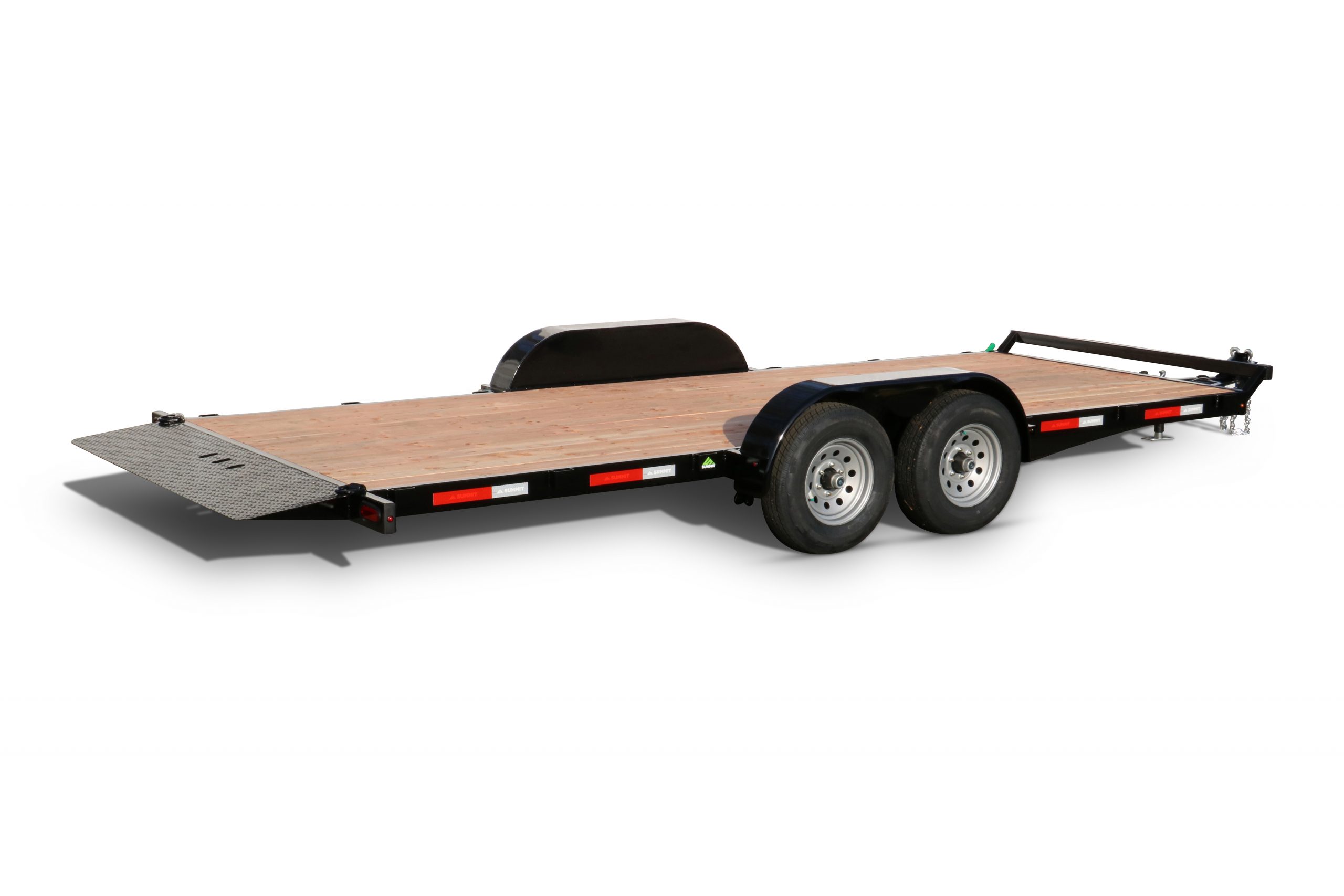

Cascade 10K Tilt (Rear) (3)

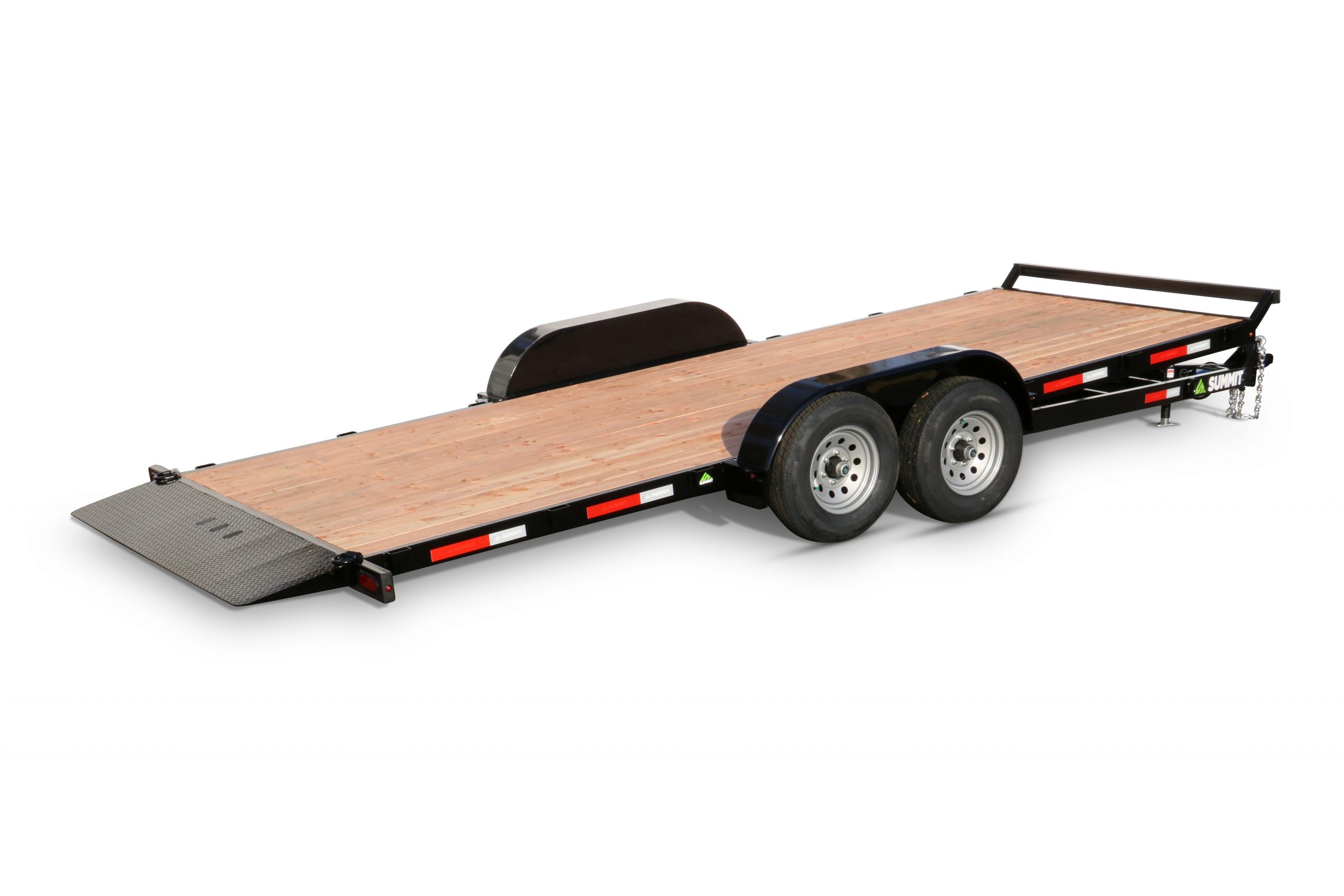

Cascade 10K Tilt (Rear-Tilted) (6)
Cacasde 10K Tilt (Front) (9) Cascade 10K Tilt (Front-Tilted) (3) Cascade 10K Tilt (Side) (10) Cascade 10K Tilt (Side-Tilted) (2) Cascade 10K Tilt (Rear) (3) Cascade 10K Tilt (Rear-Tilted) (6)

STANDARD FEATURES

Coupler StyleAdjustable (5 Position)Fender TypeTeardrop (Smooth)
Ball Size2 5/16"Tire SizeST 225/75R15D
Saftey Chains5/16" w/ Clevis LatchBolt Pattern6 on 5.5
Jack5K SwingTire TypeSteel Belted Radials (Nitrogen Filled)
Plug7 Way RVTire PSI65#
Tongue5" TubeTire Weight Rating2540#
Main Frame5" ChannelLighting (Clearance)LED Bullet
X-members3" Channel (18" on Center)Lighting (Stop)Sealed LED (24 Diode)
Axles5200#Decking2x6 Doug Fir (Premium)
BrakeElectricPaint TypePolyurethane
Brake Size12" x 2"Paint ColorHigh Gloss Black or Charcoal Metallic
Rear Approach14 Degree (Split)WarrantyLifetime Structural (Limited)
D-Rings4 - 5/8"

ACCESSORIES & OPTIONS

Spare Mount (Welded)Spare Tire
Spare Mount (Removable)Pressure Treated Decking
Removable Fenders

SPECIFICATIONS AND PRICING

ModelC5TB716TA3C5TB718TA3C5TB720TA3
Tongue Length56"56"56"
Deck Length194"218"242"
Deck Width83"83"83"
Overall Width102"102"102"
Overall Length246"294"318"
Fender Height12"12"12"
Deck Height18"18"18"
GVWR10,00010,00010,000
Curb Weight *2,2342,3962,558
Payload Capacity7,7667,6047,442

* Weights shown are estimates for base models without options
