PantiltDenali Pro14,000 lb.

Denali Pro Series Pan Tiltbed 14K

*Denali Pro Series Pan Tiltbed 14K

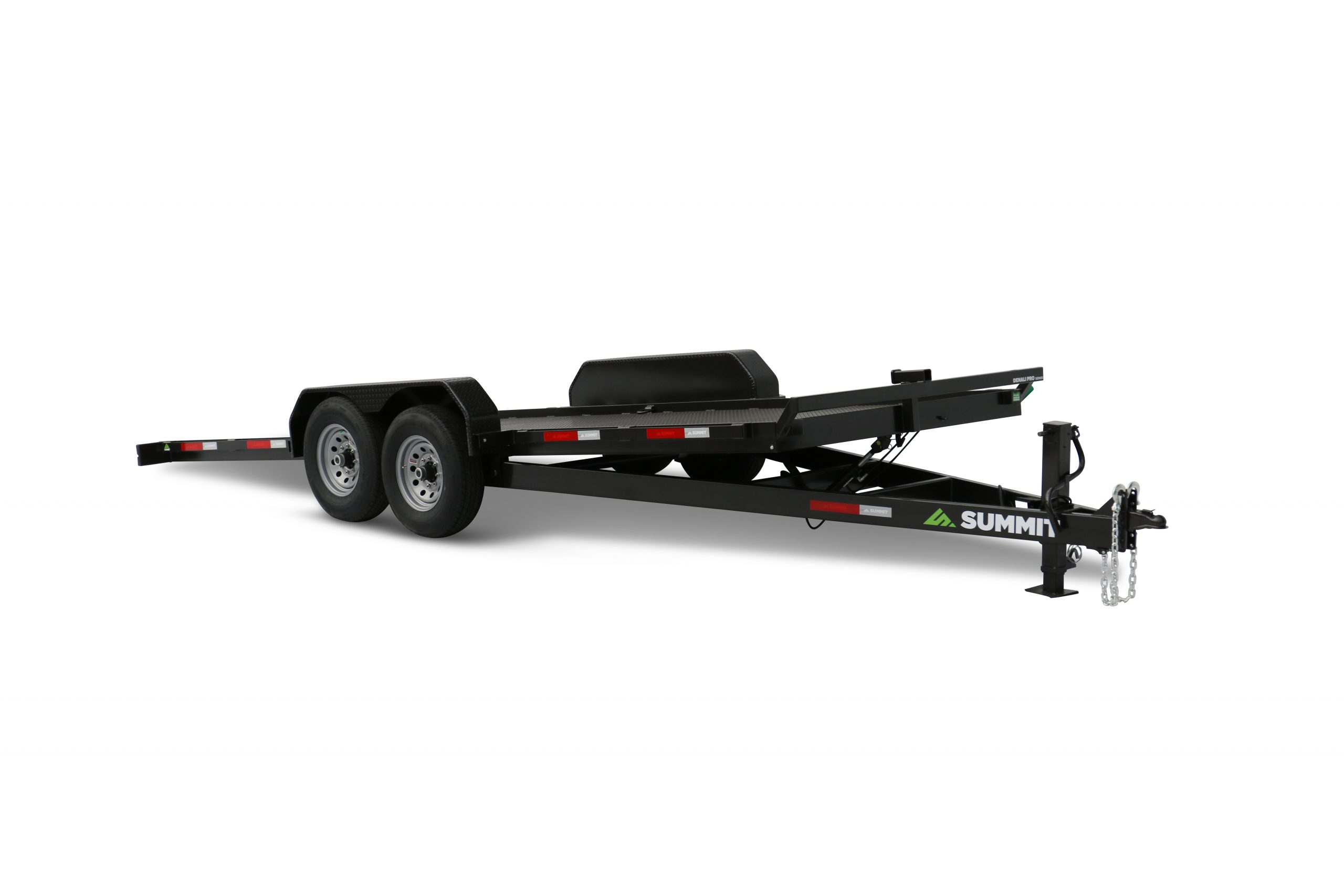

Denali Pro Pan Tiltbed 14K (6)

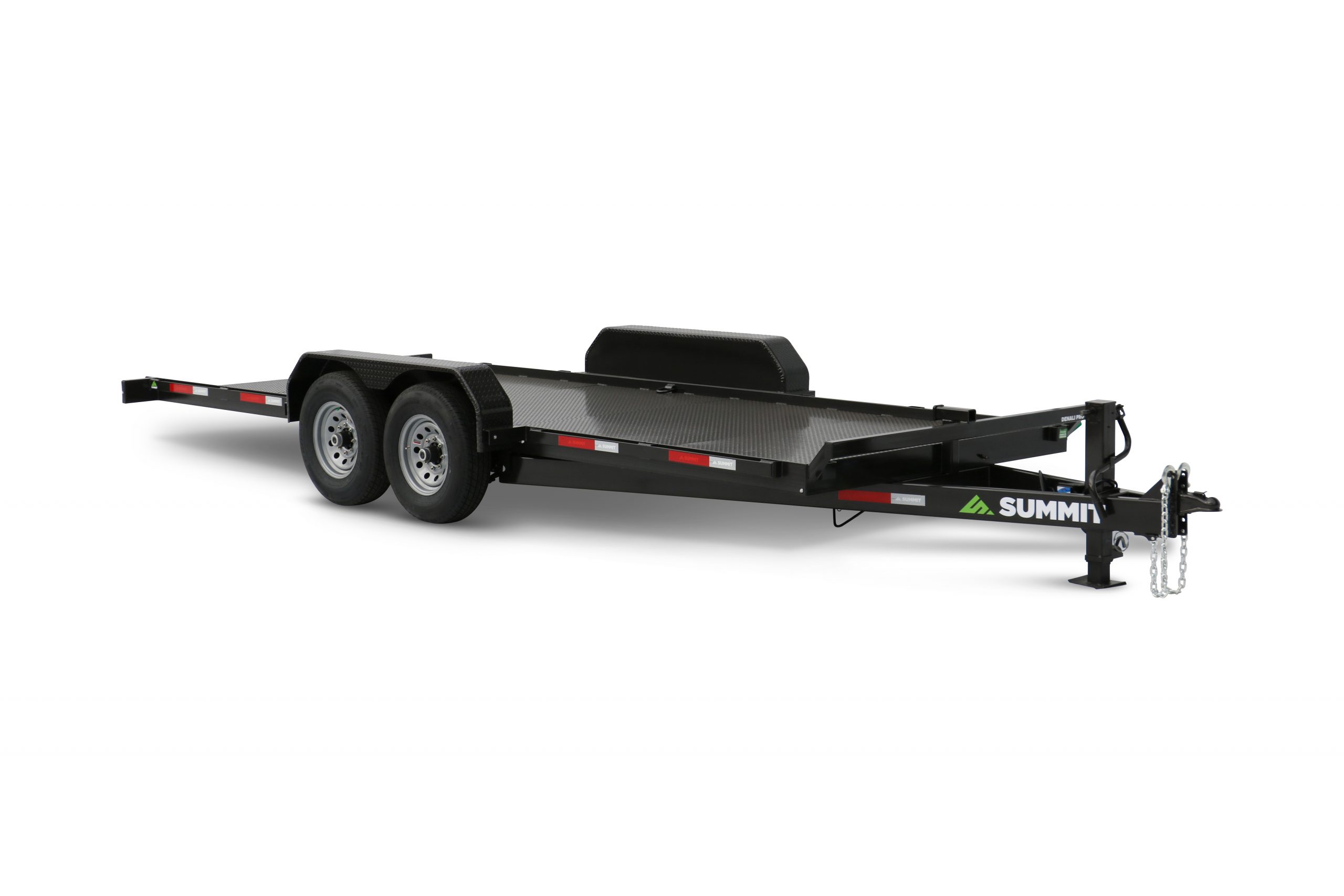

Denali Pro Pan Tiltbed 14K (4)

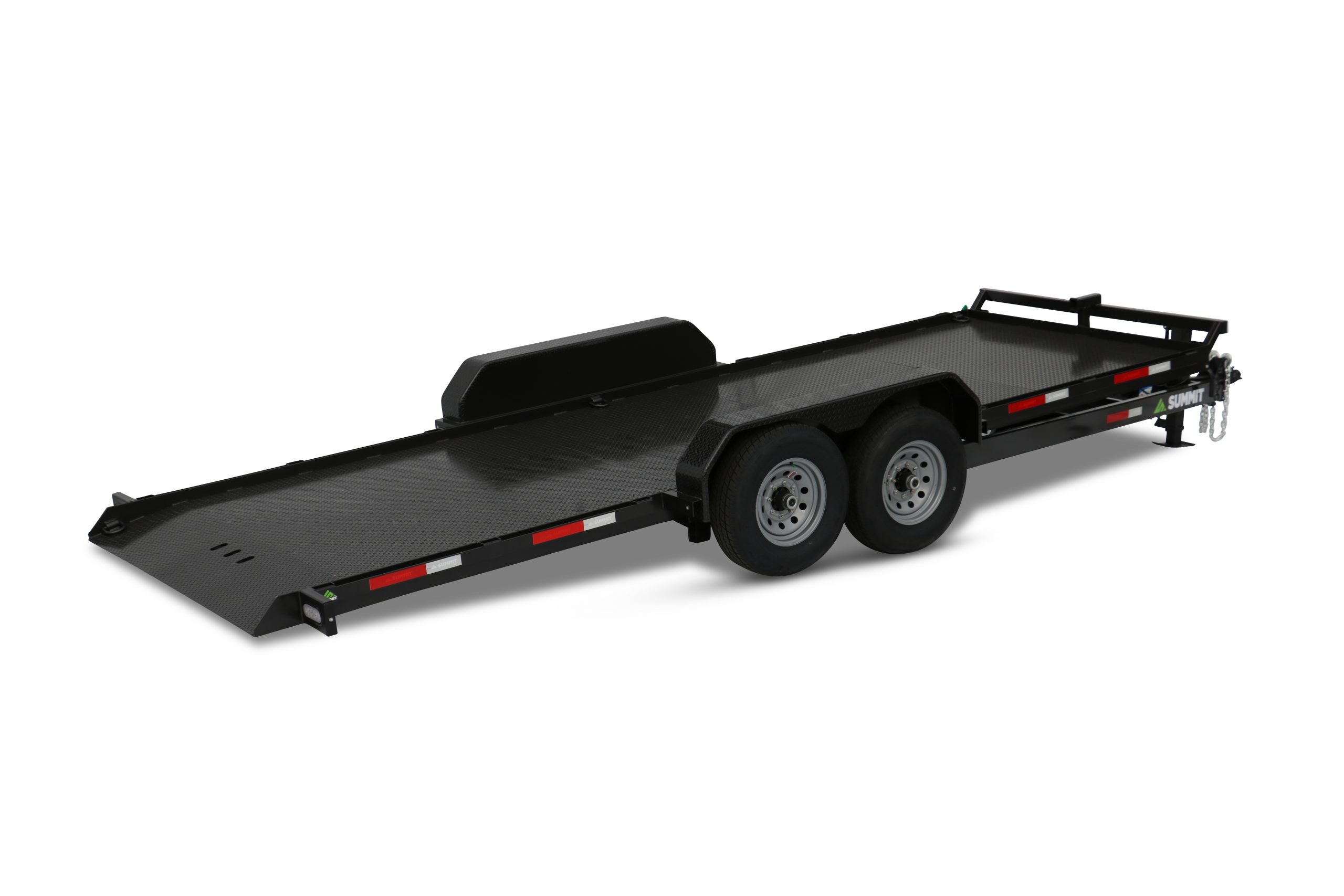

Denali Pro Pan Tiltbed 14K (1)

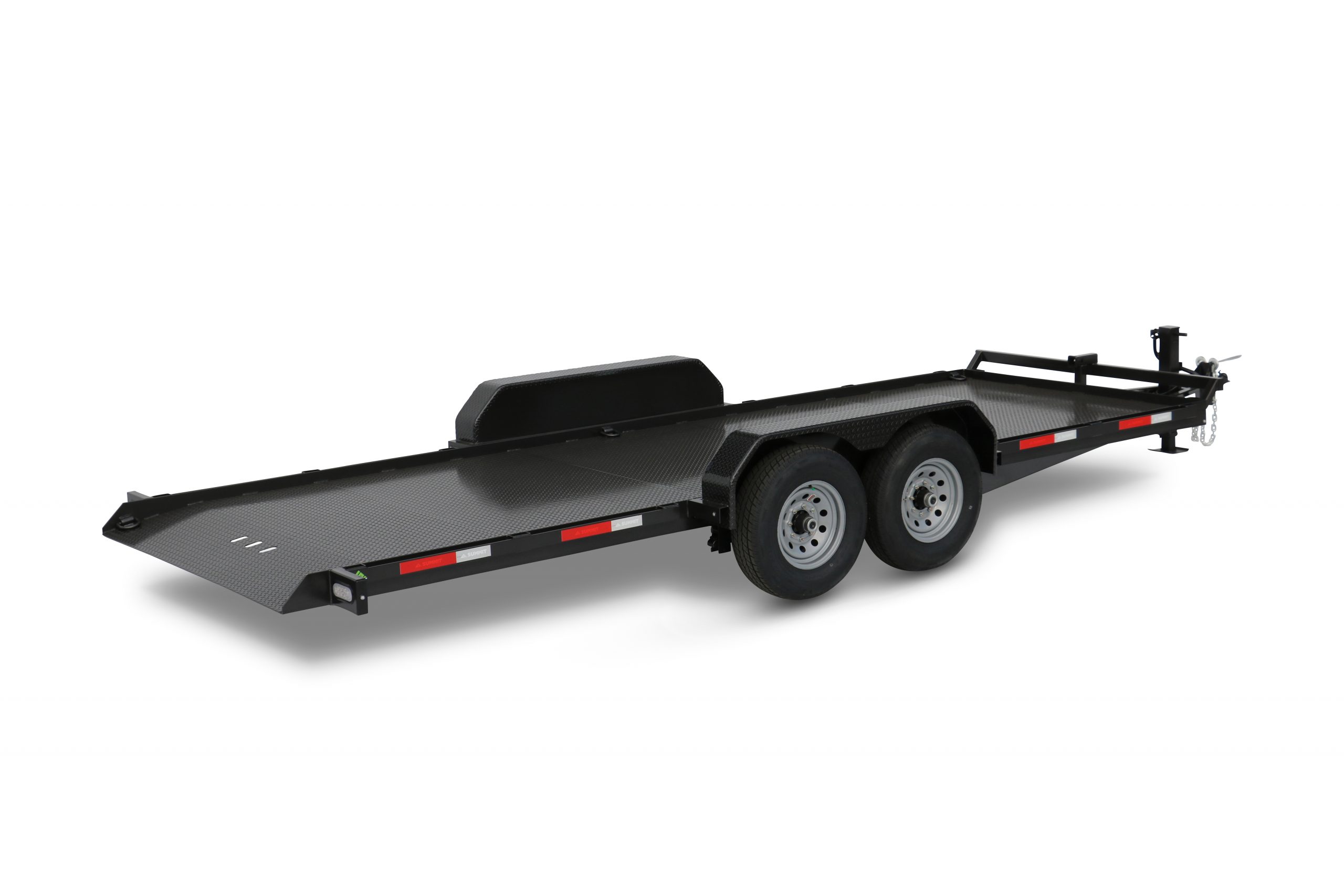

Denali Pro Pan Tiltbed 14K (2)

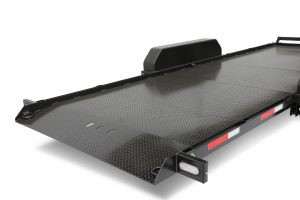

Denali Pro Pan Tiltbed 14K (5)
Denali Pro Pan Tiltbed 14K (6) Denali Pro Pan Tiltbed 14K (4) Denali Pro Pan Tiltbed 14K (1) Denali Pro Pan Tiltbed 14K (2) Denali Pro Pan Tiltbed 14K (5)

STANDARD FEATURES

Coupler StyleAdjustable (5 Position)Fender TypeTeardrop (Diamond Plate)
Ball Size2 5/16"Tire SizeST 235/80R16E
Saftey Chains3/8" w/Clevis LatchBolt Pattern8 on 6.5
Jack12K Drop LegTire TypeSteel Belted Radials (Nitrogen Filled)
Plug7 Way RVTire PSI80#
Tongue6" TubeTire Weight Rating3520#
Main Frame5 x 3.5" AngleLighting (Clearance)LED Bullet
X-members3" Channel (18" on Center)Lighting (Stop)Sealed LED "w/Backup" (30 Diode)
Axles7000# (Spring)Decking2x6 Doug Fir (Premium)
BrakeElectricPaint TypePolyurethane
Brake Size12" x 2"Paint ColorHigh Gloss Black or Charcoal Metallic
Hyd. CylinderDual w/lockout ValveWarrantyLifetime Structural (Limited)
D-Rings6 - 5/8"

ACCESSORIES & OPTIONS

Spare Mount (Welded)Spare Tire
Spare Mount (Removable)Removable Fenders

SPECIFICATIONS AND PRICING

ModelDPPTB716TA5DPPTB718TA5DPPTB720TA5DPPTB722TA5
Tongue Length56"56"56"56"
Deck Length194"218"242"266"
Deck Width82 1/2"82 1/2"82 1/2"82 1/2"
Overal Width102"102"102"102"
Overall Length270 1/2"294 1/2"318 1/2"342 1/2"
Fender Height12"12"12"12"
Deck Height20"20"20"20"
GVWR14,00014,00014,00014,000
Curb Weight *2,7752,9063,0373,168
Payload Capacity11,22511,09410,96310,832

* Weights shown are estimates for base models without options
